FA Series SKU: FA
5-gallon capacity water treatment tank with Fleck cap, designed for high-pressure applications, showcasing durability and American manufacturing.
2-gallon capacity FA Series funnel feeder with adjustable legs, designed for chemical introduction in closed circulating systems, featuring a 300 PSI rating and heavy gauge carbon steel construction.
Replacement funnel kit for FA Series, featuring a heavy-duty corrosion-resistant design, includes a funnel, valve, and nipple for safe chemical handling in hot or cold loops.
2-gallon capacity FA Series bypass feeder by Vector Industries, featuring a Fleck cap rated for 200 PSI, supported by adjustable legs for installation flexibility.
2-gallon capacity bypass feeder with threaded cap, designed for chemical introduction in closed systems, featuring adjustable leg stands for installation.
Stainless steel replacement filter basket with corrosion-resistant design and high-capacity filtration for feeder systems.
7-gallon bypass feeder with threaded cap, designed for up to 300 PSI, featuring adjustable leg stands for easy installation.
5-gallon capacity threaded closure assembly rated at 300 PSI, featuring a corrosion-resistant epoxy coating and designed for secure sealing in industrial applications.
10-gallon capacity bypass feeder from the FA Series by Vector Industries, featuring a Fleck cap rated for 200 PSI and adjustable leg support for installation.

FA Series

Add to P.0. Reset
Frequently Bought Together
Product Details
Features & Benefits Manufactured with heavy gauge carbon steel Chemical resistant epoxy powder coating Available in 2, 5, 7, or 10 gallon sizes Supports up to 300 PSI 1/4 inch opening on top of feeder for bleed valve
Replacement guarantee badge for Vector Industries O-rings, highlighting a 1-year warranty.
Made in USA emblem representing quality and craftsmanship for Vector Industries' Economy Series products.
Description

Bypass feeders are designed to introduce solid or liquid chemicals such as corrosion inhibitors into closed circulating water systems such as chillers, boilers, and engine jackets.  Adjustable leg stands are included to make installation easy and adaptable to any piping system.

Variations Offered

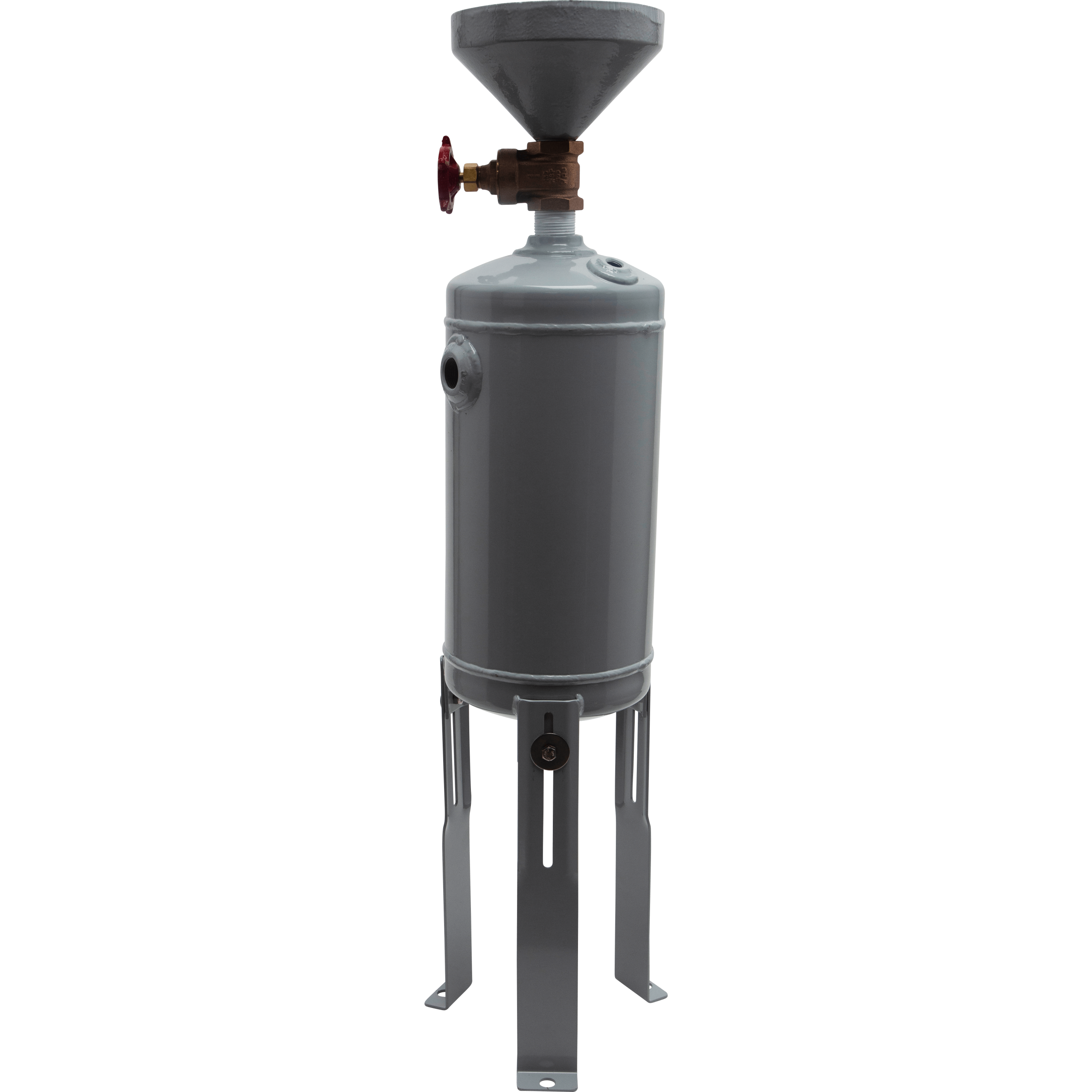

2-gallon capacity funnel feeder with adjustable leg stands, designed for chemical introduction in closed water systems, featuring a 300 PSI rating and a 1/4 inch bleed valve opening. FA-500AL

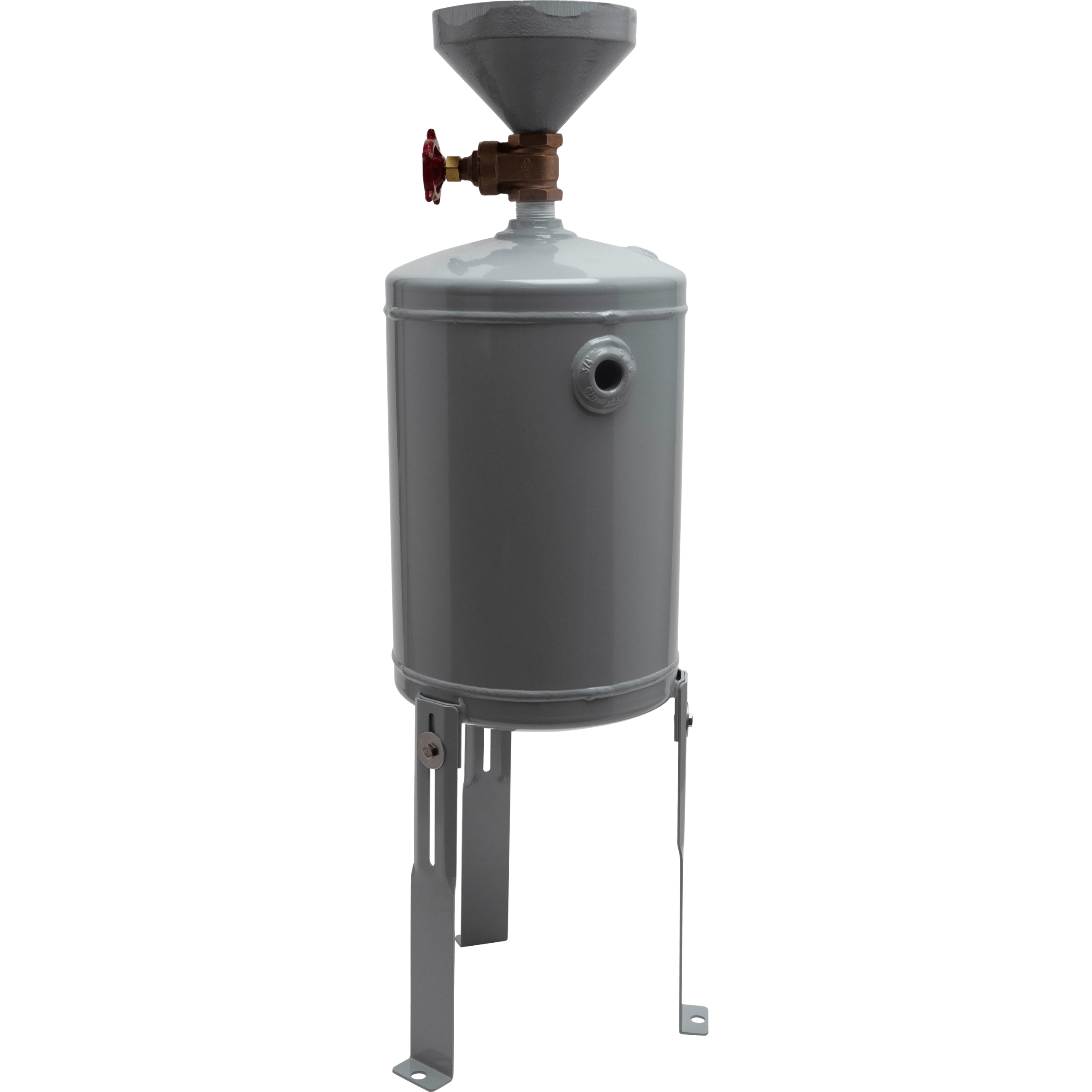

5-gallon capacity funnel bypass feeder with adjustable legs, designed for introducing chemicals into closed water systems, featuring a 1/4 inch opening and supporting up to 300 PSI. FA-600AL
2-gallon FA-700AL bypass feeder with Fleck cap, designed for chemical introduction in closed systems, featuring adjustable leg stands and supporting up to 200 PSI. FA-700AL

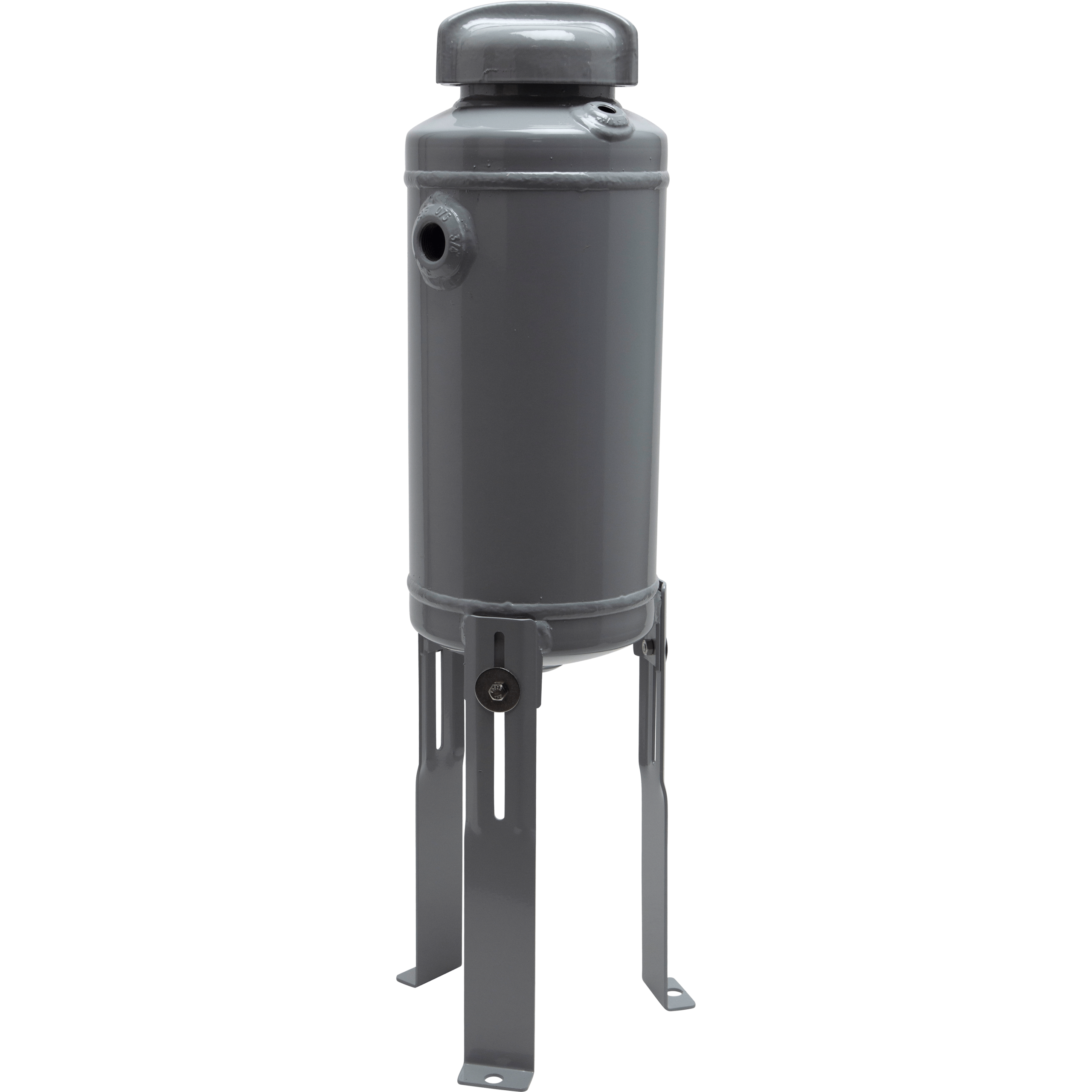

2-gallon capacity bypass feeder with threaded cap, designed for chemical introduction in closed systems, featuring adjustable leg stands and a 300 PSI support. FA-700ALTC

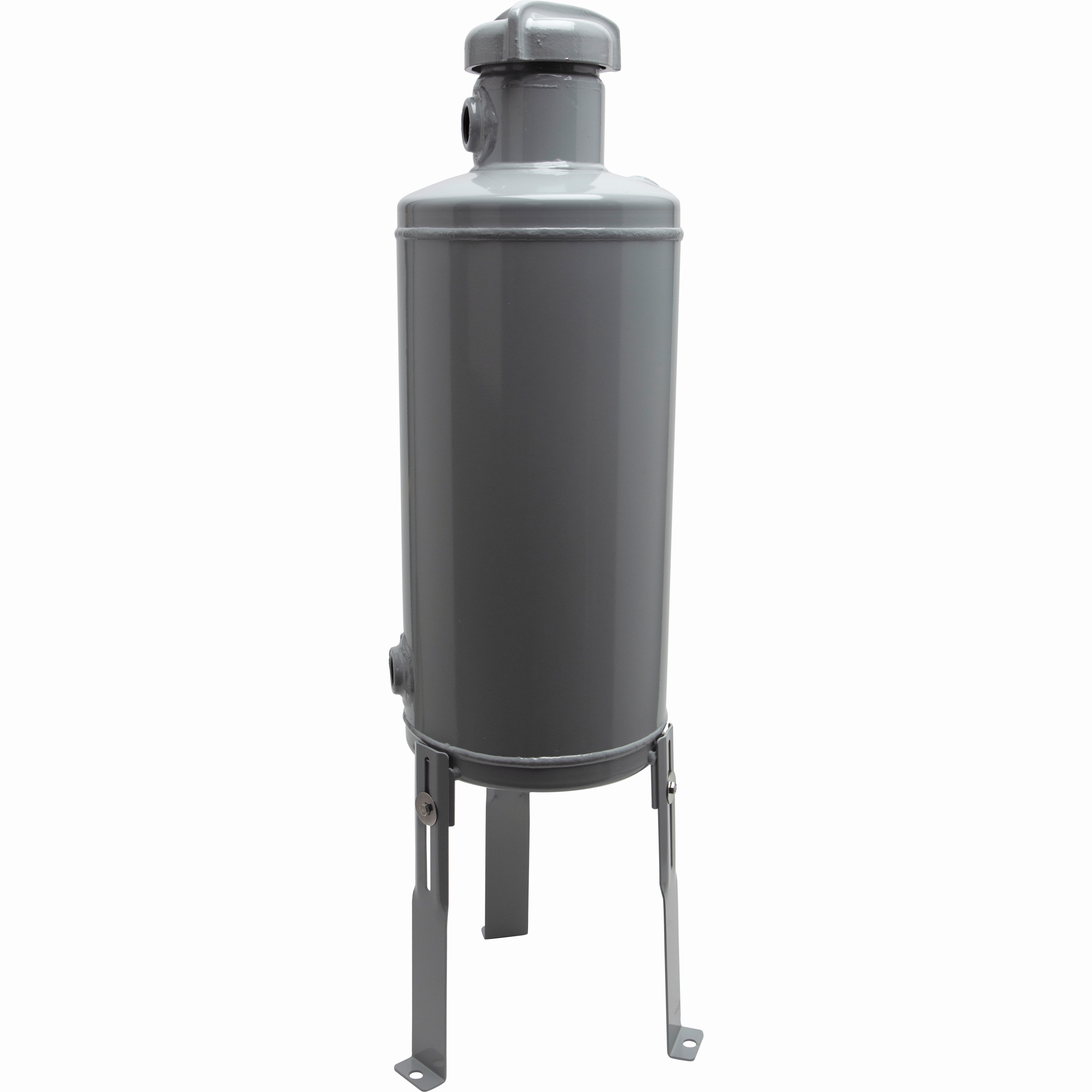

7-gallon FA-900AL bypass feeder with Fleck cap, featuring adjustable legs and chemical-resistant coating, designed for closed circulating water systems. FA-900AL

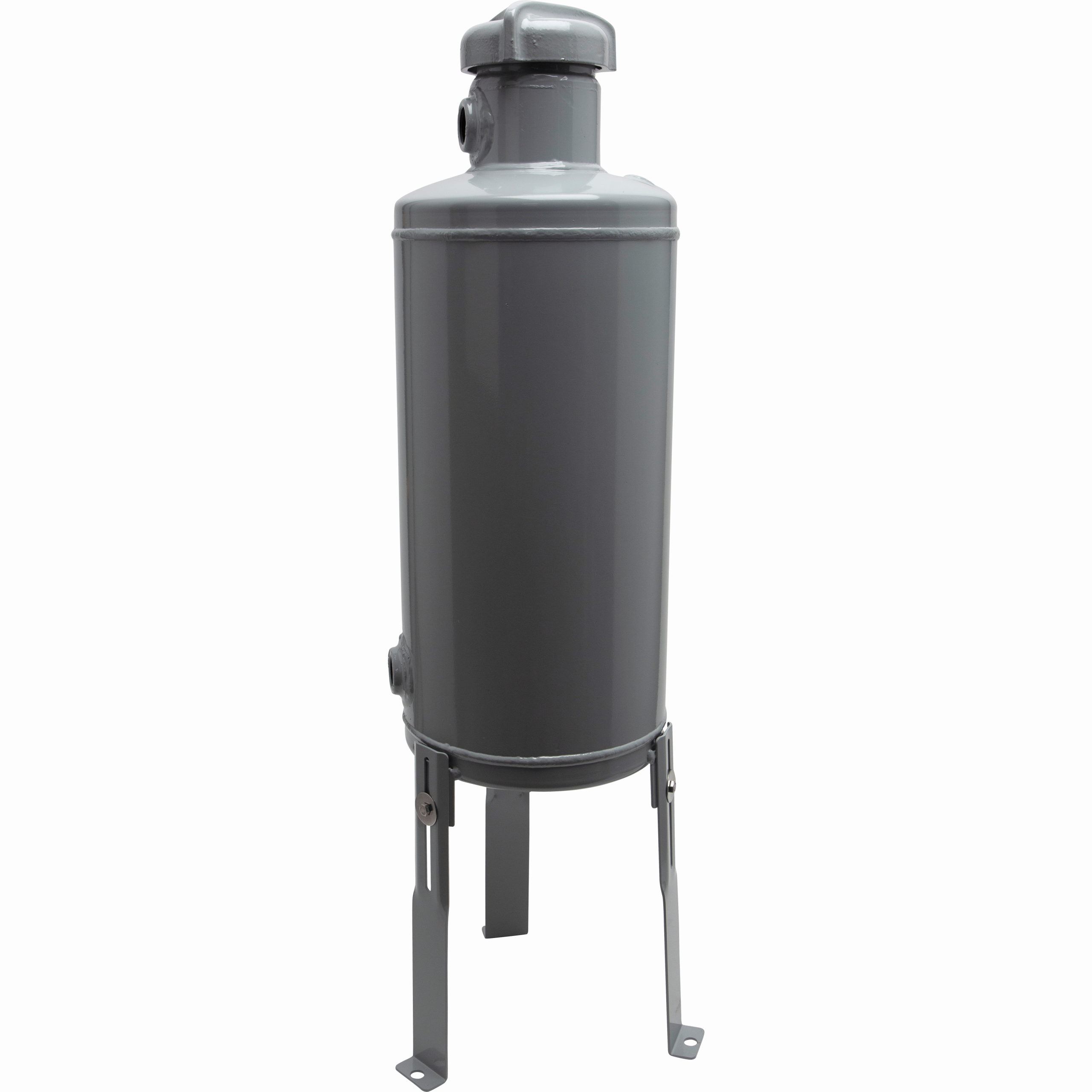

7-gallon threaded cap bypass feeder with adjustable legs, designed for chemical introduction in closed water systems, supporting up to 300 PSI. FA-900ALTC

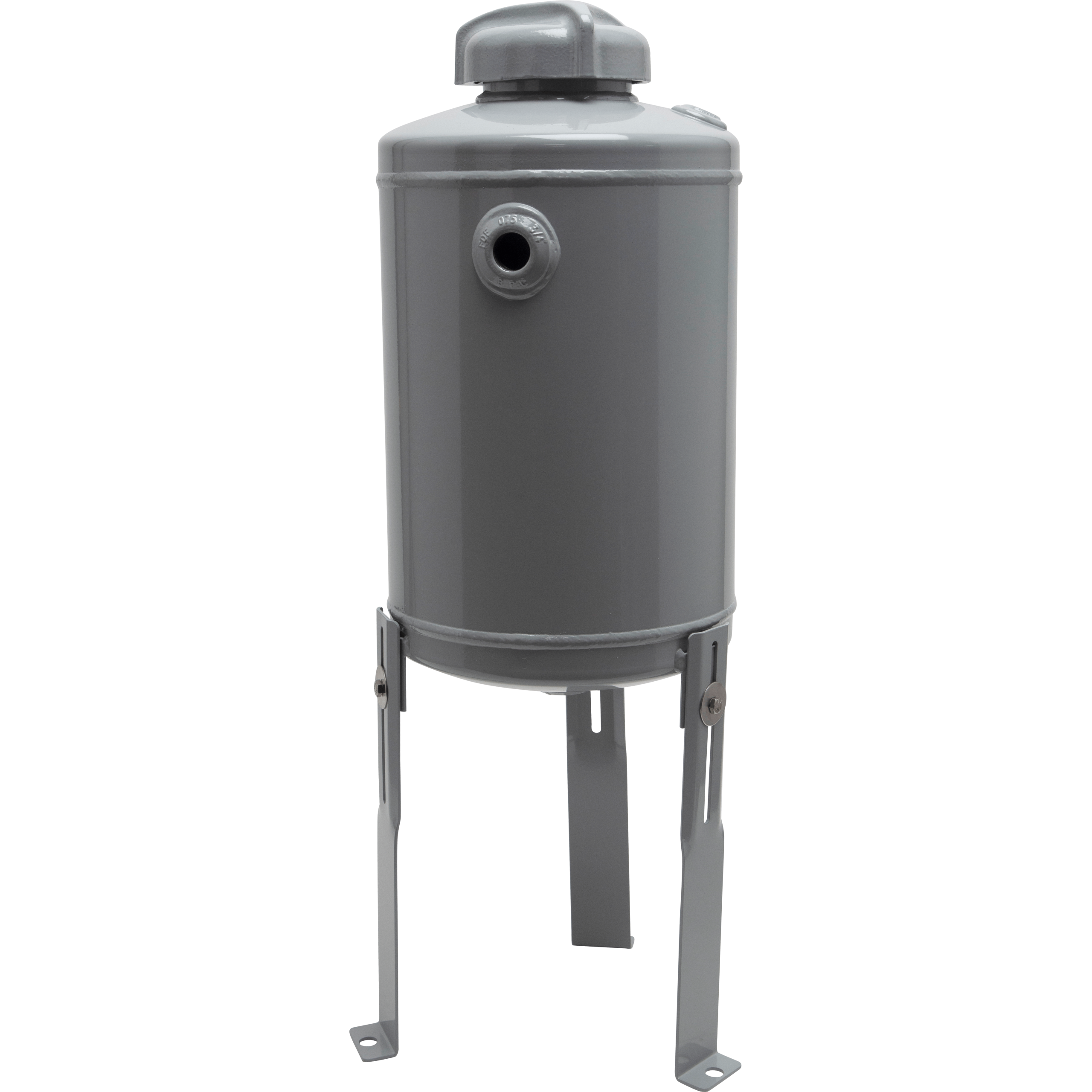

5-gallon capacity bypass feeder with Fleck cap, chemical-resistant epoxy coating, and adjustable leg support for easy installation. FA-1000AL
5-gallon FA-1000ALTC bypass feeder with threaded cap, heavy gauge carbon steel construction, and adjustable leg stands, designed for introducing chemicals into closed circulating water systems. FA-1000ALTC

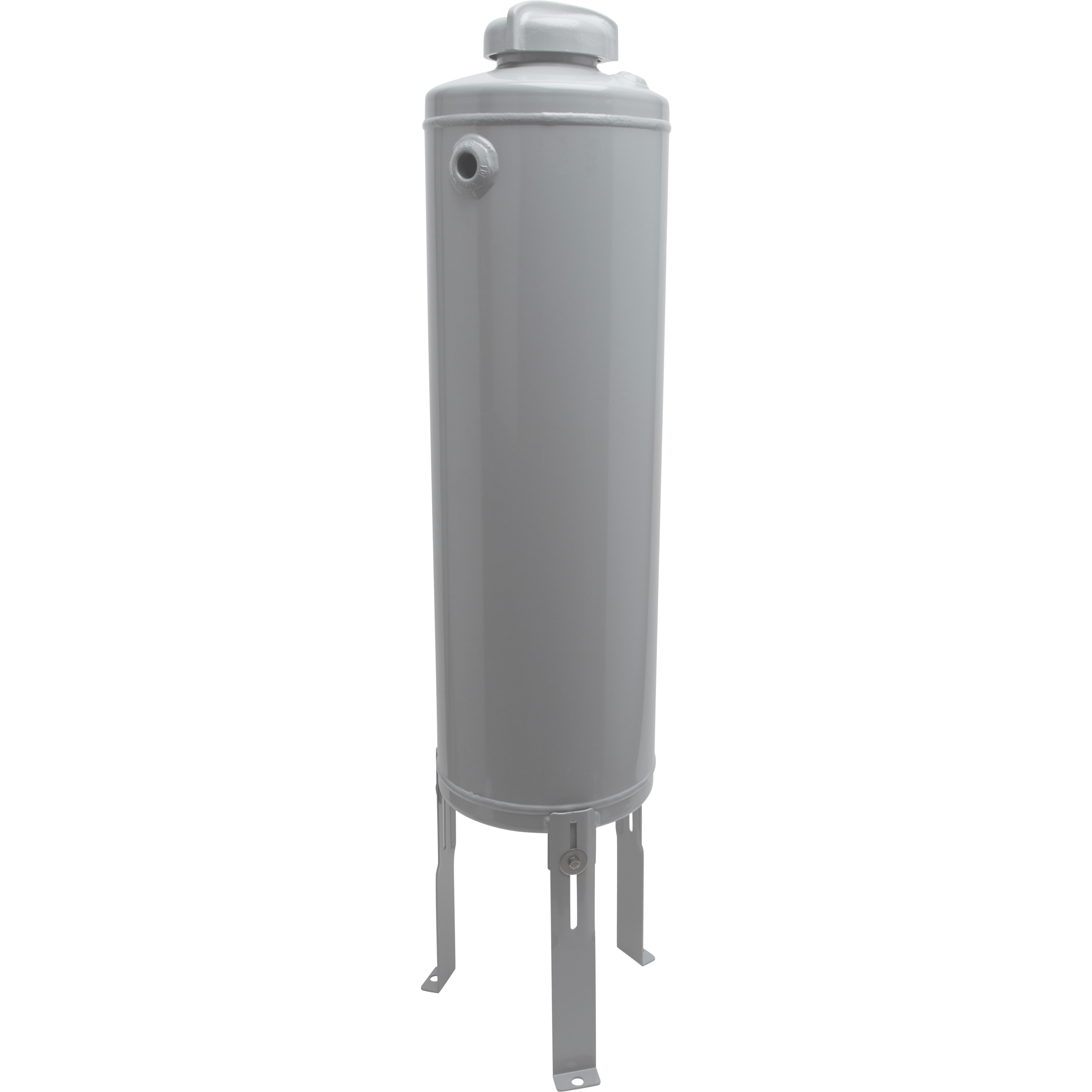

10-gallon capacity bypass feeder by Vector Industries, featuring heavy gauge carbon steel construction, chemical-resistant epoxy powder coating, and adjustable leg stands for easy installation. FA-1200AL
Specifications
Model Capacity Cap Type & PSI Leg Support Filter Compatibility Inlet/Outlet NPT Size
FA-500AL 2 Gallon Funnel (300 PSI) Included None 3/4 inch
FA-600AL 5 Gallon Funnel (300 PSI) Included None 3/4 inch
FA-700AL 2 Gallon Fleck (200 PSI) Included Filter Kit (not included) 3/4 inch
FA-700ALTC 2 Gallon Threaded (300 PSI) Included Filter Kit (not included) 3/4 inch
FA-900AL 7 Gallon Fleck (200 PSI) Included Bag (included) 1 inch
FA-900ALTC 7 Gallon Threaded (300 PSI) Included Bag (included) 1 inch
FA-1000AL 5 Gallon Fleck (200 PSI) Included Filter Kit (not included) 3/4 inch
FA-1000ALTC 5 Gallon Threaded (300 PSI) Included Filter Kit (not included) 3/4 inch
FA-1200AL 10 Gallon Fleck (200 PSI) Included None 3/4 inch
Technical Diagrams
FA-500AL, FA-600AL Technical diagram of FA-500AL and FA-600AL bypass feeders, featuring labeled inlet, outlet, and drain connections, illustrating design specifications for the FA Series by Vector Industries.
FA-700AL, FA-1000AL Technical diagram of FA-700AL and FA-1000AL bypass feeders, labeled with inlet, outlet, and drain connections, illustrating design specifications for the FA Series by Vector Industries.
FA-900AL Technical diagram of FA-900AL bypass feeder showing inlet, outlet, and drain connections, illustrating filtration process and design features.
FA-1200AL Technical diagram of FA-1200AL bypass feeder, featuring labeled inlet, outlet, and drain connections, illustrating design for filtration applications.
Product Information
Filter kit datasheet icon representing Vector Industries' filtration systems for FA Series, emphasizing maintenance and operational efficiency.
Product Datasheet
Icon representing compatible accessories for FA Series products by Vector Industries, featuring a yellow tag with a green plus sign.
View Compatible Accessories →
Engineering specifications icon for FA Series products from Vector Industries, featuring a ruler and pencil design, symbolizing technical details and product information.
Engineering Specifications
