Economate Series SKU: Economate

Economate Series

Add to P.0. Reset
Frequently Bought Together
Product Details
Features & Benefits 3” opening for “hockey puck” style tablets Compact & economical low-cost design See-through or solid body design 1" plumbing for high-flow systems Optional 125LB Pressure relief valve Sturdy bolt-down base

The Economate inline brominators are designed for use in commercial and industrial applications to provide disinfected or sanitized water commonly used in cooling towers and municipal pools. The brominators are available in white or clear CPVC suitable for use with bromine (BDMH) or cholrine (trichlor) tablets. Piping kits complete with valves and flow meters are also available.

Variations Offered
Model Material Capacity Color Dimensions (H x W) Inlet Diameter Flow Range

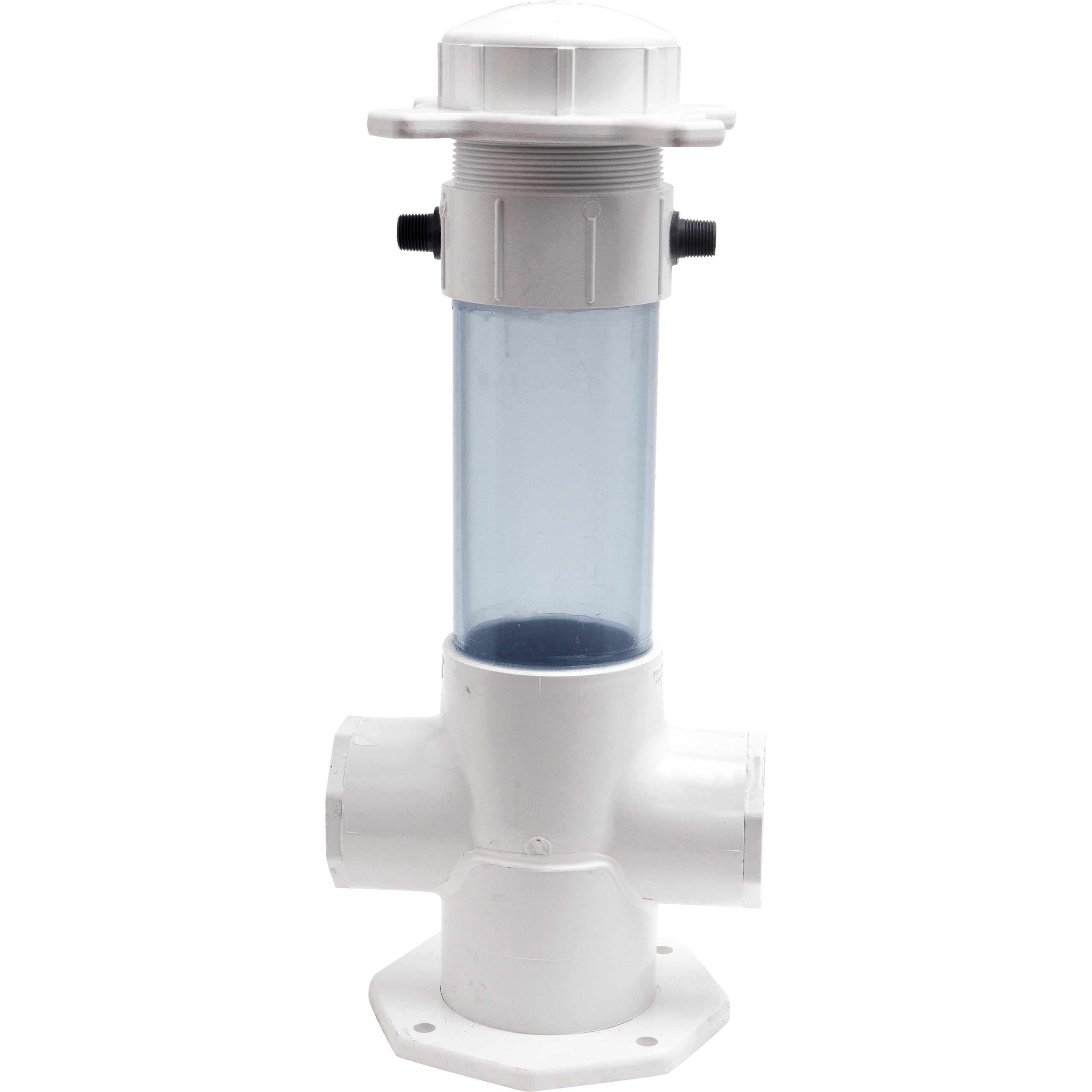

Economate-5 5 lbs (2.2 kg) Clear 23 in. x 10 in. 1 inch 1 inch

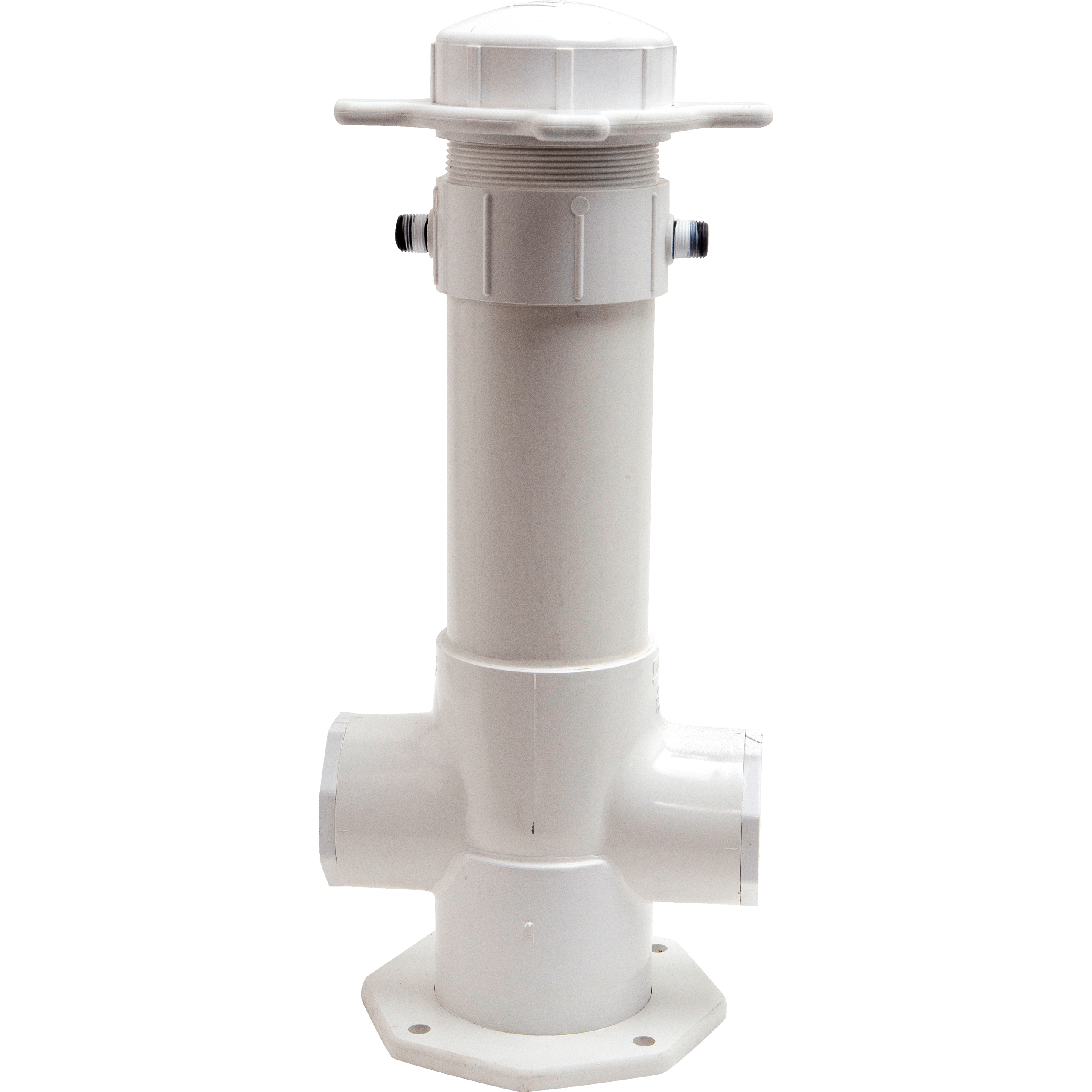

Economate-5W 5 lbs (2.2 kg) White 23 in. x 10 in. 1 inch 1 inch

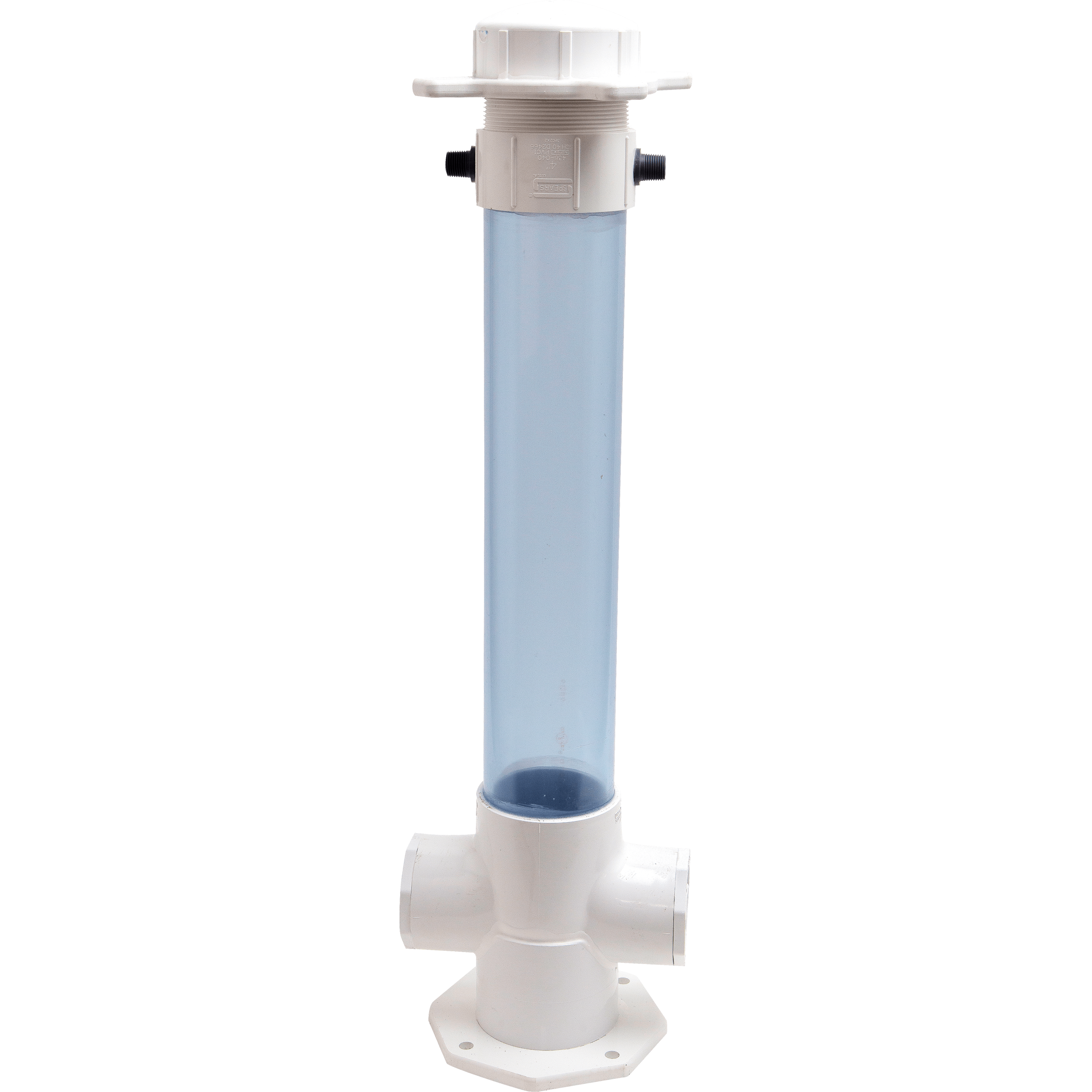

Economate-8 8 lbs (3.6 kg) Clear 35 in. x 10 in. 1 inch 1 inch

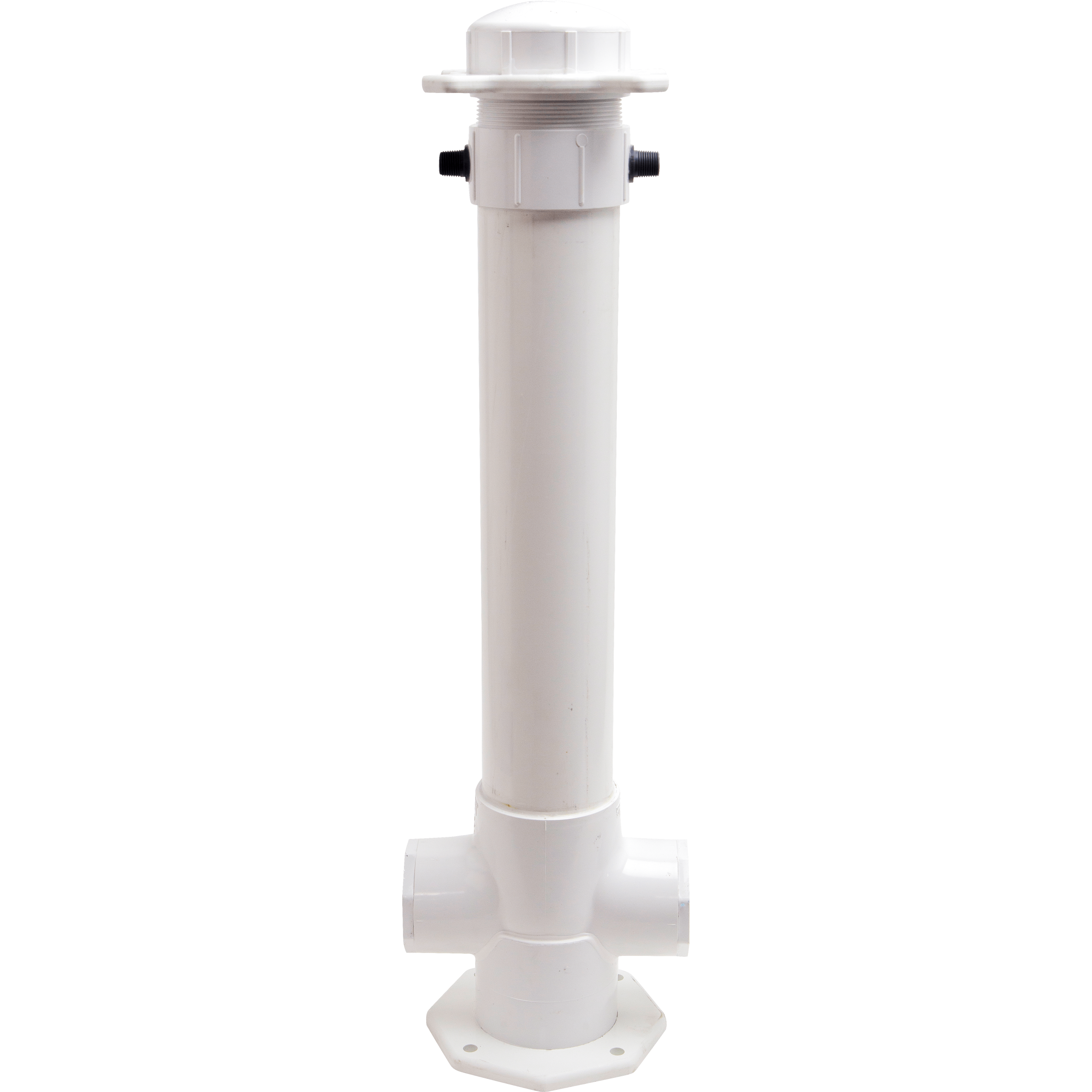

Economate-8W 8 lbs (3.6 kg) White 35 in. x 10 in. 1 inch 1 inch
Technical Diagrams
All Economate Variations
