Intelifeeder Re-Pressurizer System SKU: VGF100-1-35-55-C-L-115

Intelifeeder Re-Pressurizer System

Add to P.0.
Frequently Bought Together
Product Details
Features & Benefits Wi-Fi Connectivity (Web & Mobile Access) Efficient and Durable Design Built-In Circuit Breaker
Description

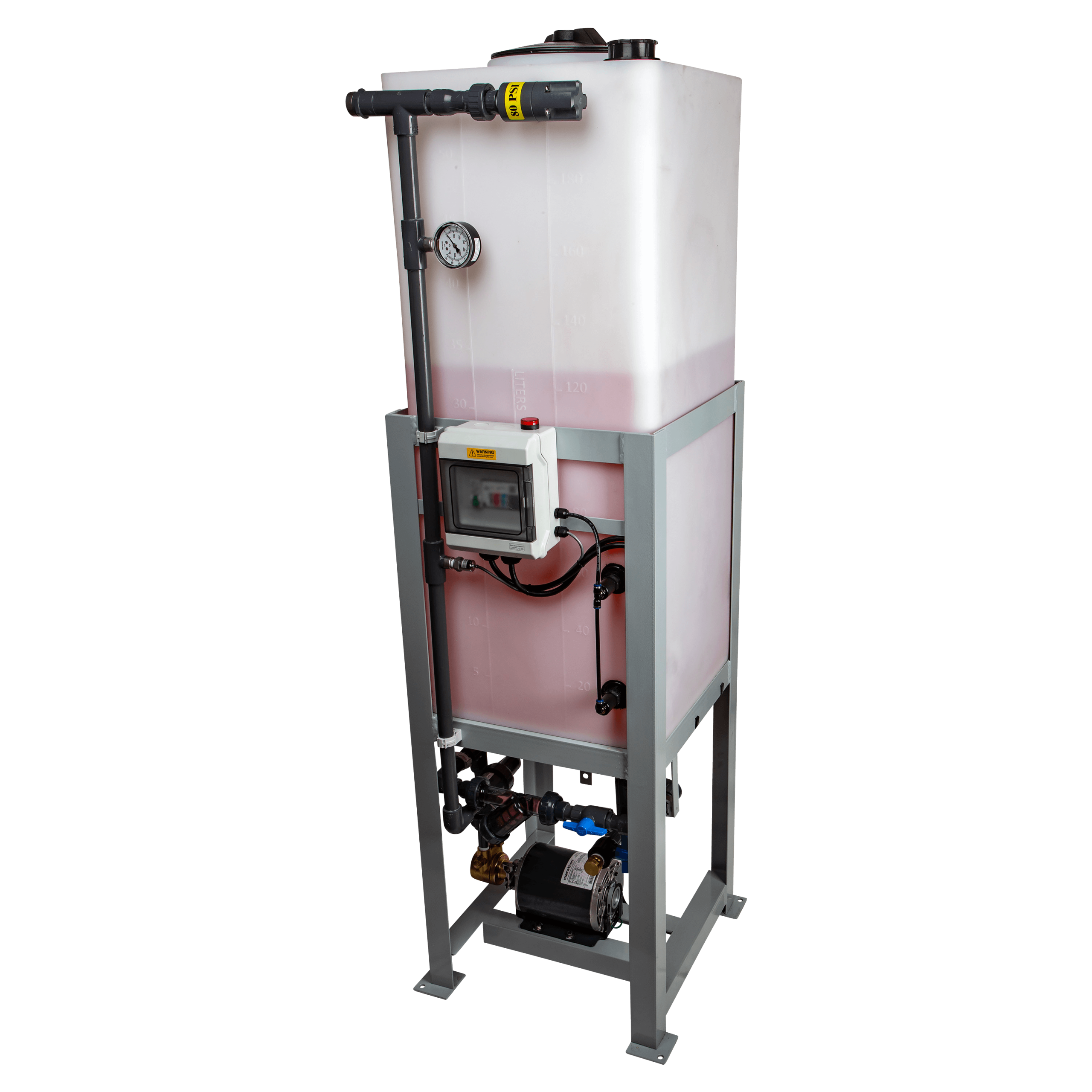

The Intelifeeder by Vector Industries is a glycol feeder system that monitors process pressure and responds to pressure drops from system loss or thermal contraction.

Automatically maintain the working pressure in any Glycol feed closed loop system with Pressure Transducer technology allowing for user defined Hi & Low Setpoints from 5 to 80 PSI.

Wi-Fi Connectivity provides local and remote monitoring from any phone or web browser, powered by the Inteliverse controller.

Change pressure setpoints, HOA control of the feed pump and even receive email alerts for system alarms like low tank level.

Built in Low and Low-Low (empty tank) level sensors allow you to know when you are running out of inventory and prevents the pump from running dry.

The system is pre-wired for 115V operation and is circuit breaker protected.

Getting your device connected is easy. Follow our quick-start guide for more details.

Quick Start Guide (Video)

Product Overview (Video)

EZ Fill System Instructions (Video)

Specifications
Specification Value
Feed Pump Type Rotary Vane
Motor HP 1/2 HP
Motor RPM 1725
Controller Ingress Rating IP65
Input Voltage 115VAC @ 60Hz 1pH
Max Current Draw 10 Amp/pump
Max Temperature 125 F
Dry System Weight 125 lbs (1 pump)
Technical Diagrams
Intelifeeder Re-pressurizer System Diagram
