Economy Series SKU: EC

5-gallon capacity water treatment tank with legs, designed for chemical and water treatment applications, emphasizing high-quality manufacturing by Vector Industries in the USA.

Economy Series

Name: Economy Series
SKU: EC
Availability: InStock

SKU: EC

Frequently Bought Together

Product Details

Features & Benefits Manufactured with heavy gauge carbon steel Chemical resistant epoxy powder coating Available in 2, 2.5, 5, 7, or 7.5 gallon sizes Supports up to 300 PSI and 3/4" NPT fittings

Description

The Economy Bypass Feeders are made of high-quality steel and they are corrosion resistant for years of service. These units are designed for the introduction of solid or liquid chemicals with high capacity filtration capabilities into closed hot and cold water systems.

Variations Offered

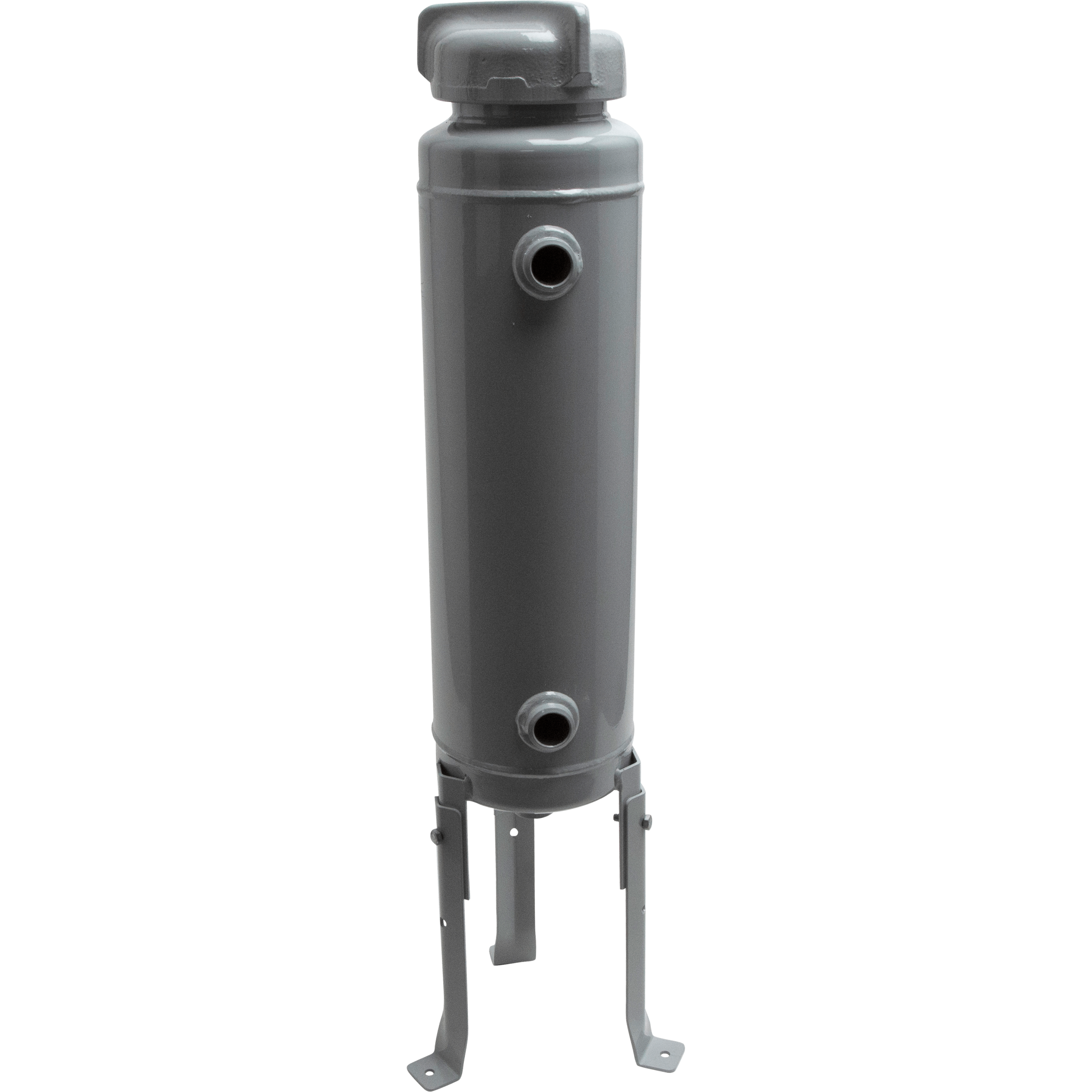

Economy Series 2-gallon bypass feeder with legs, heavy gauge carbon steel construction, designed for chemical introduction in closed water systems.

EC-2TC

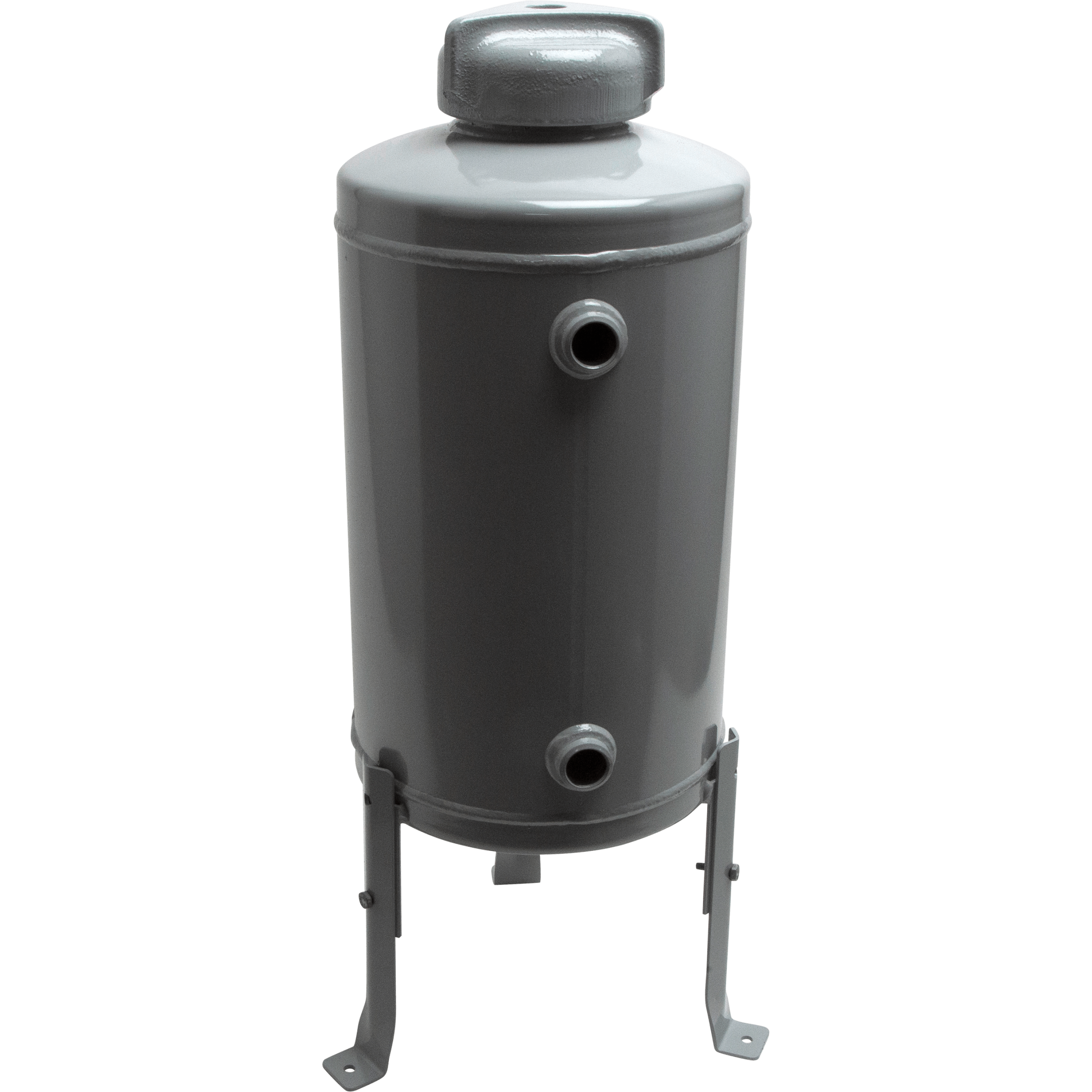

5-gallon Economy Bypass Feeder tank with legs, featuring a corrosion-resistant gray finish, designed for chemical introduction in closed water systems.

EC-5TC

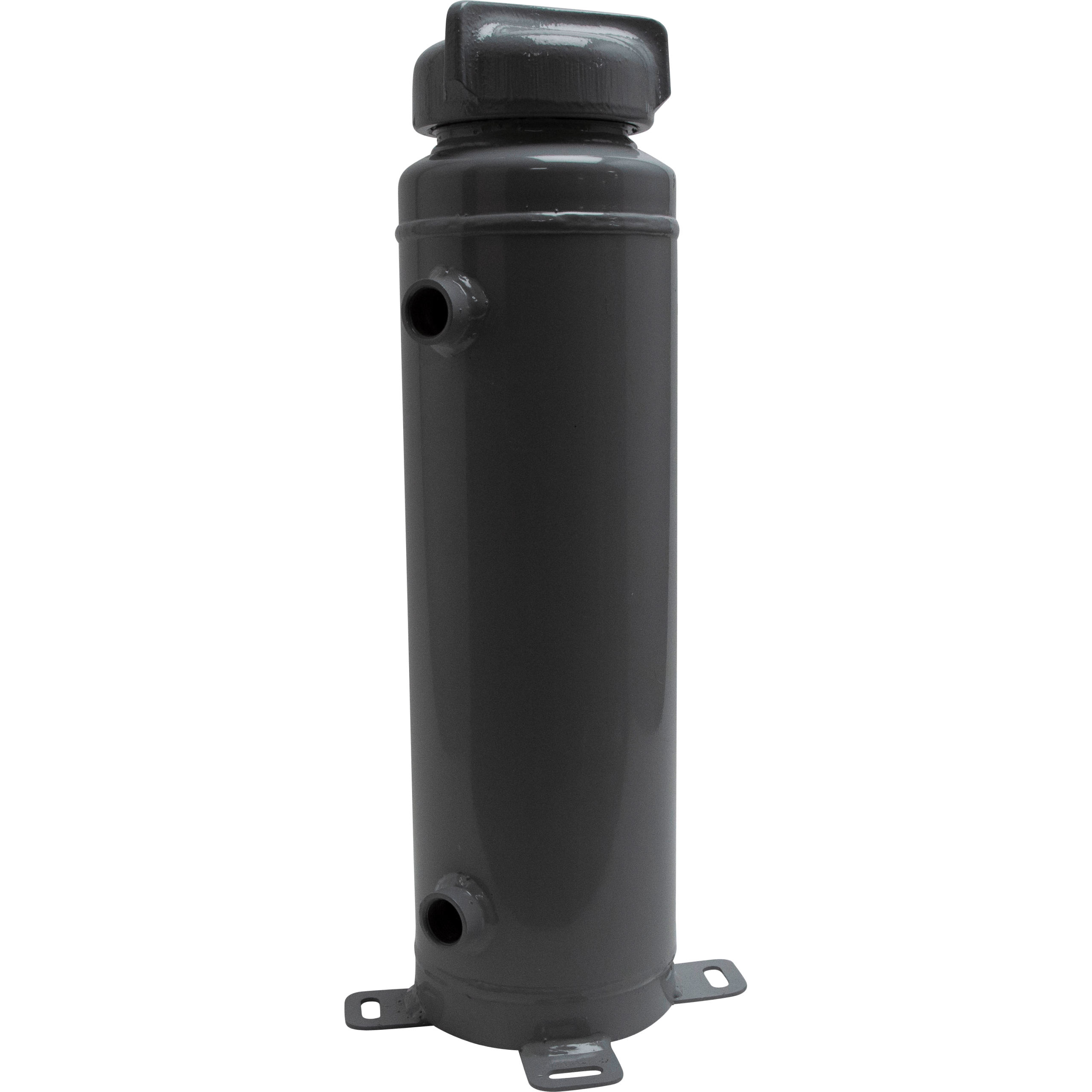

ECV-2TC

5-gallon Economy Bypass Feeder with corrosion-resistant epoxy powder coating, designed for chemical introduction in hot and cold water systems, featuring 300 PSI support and 3/4" NPT fittings.

ECV-5TC

ECX-2TC

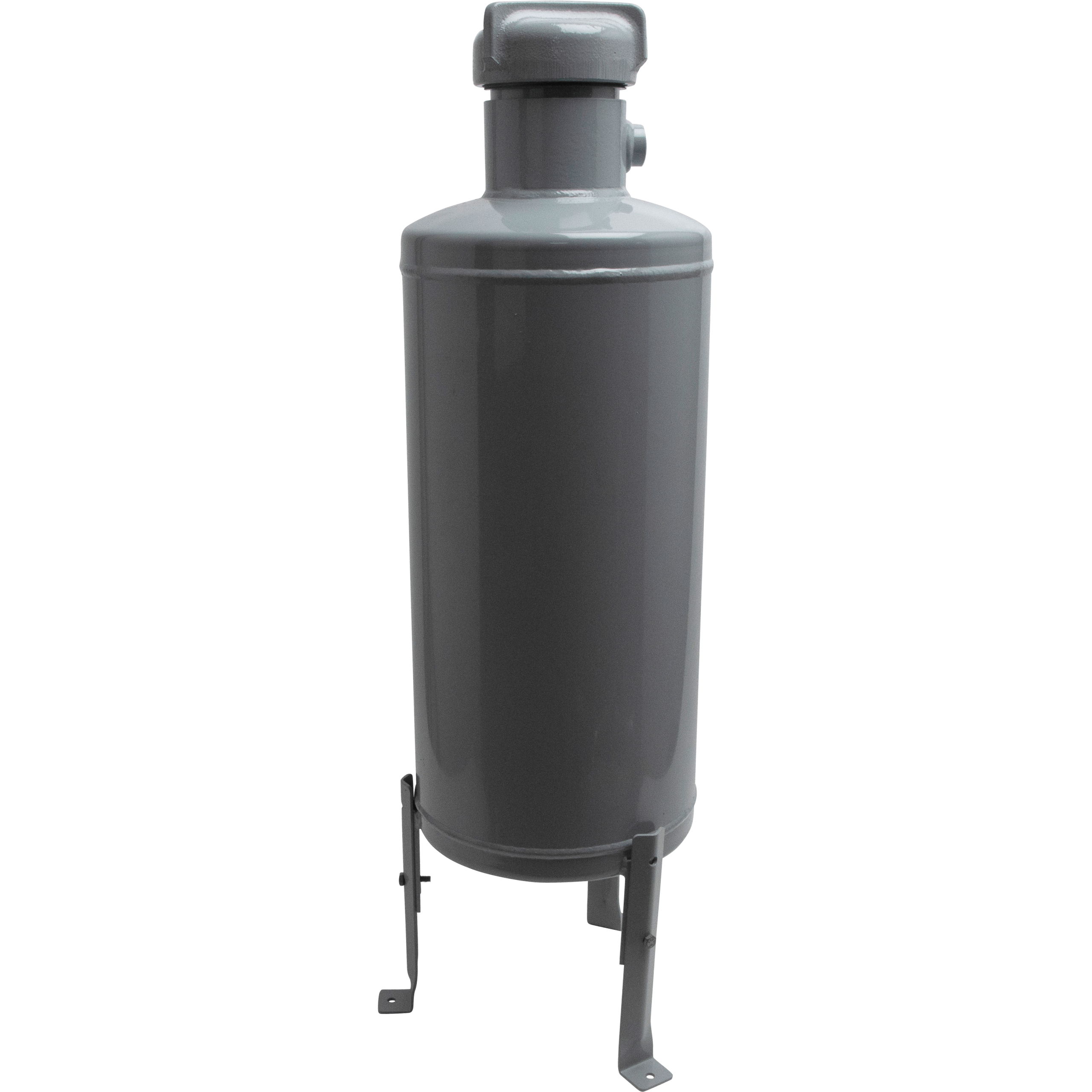

7-gallon Economy Bypass Feeder with legs, made of heavy gauge carbon steel, designed for chemical introduction in water systems.

ECX-7TC

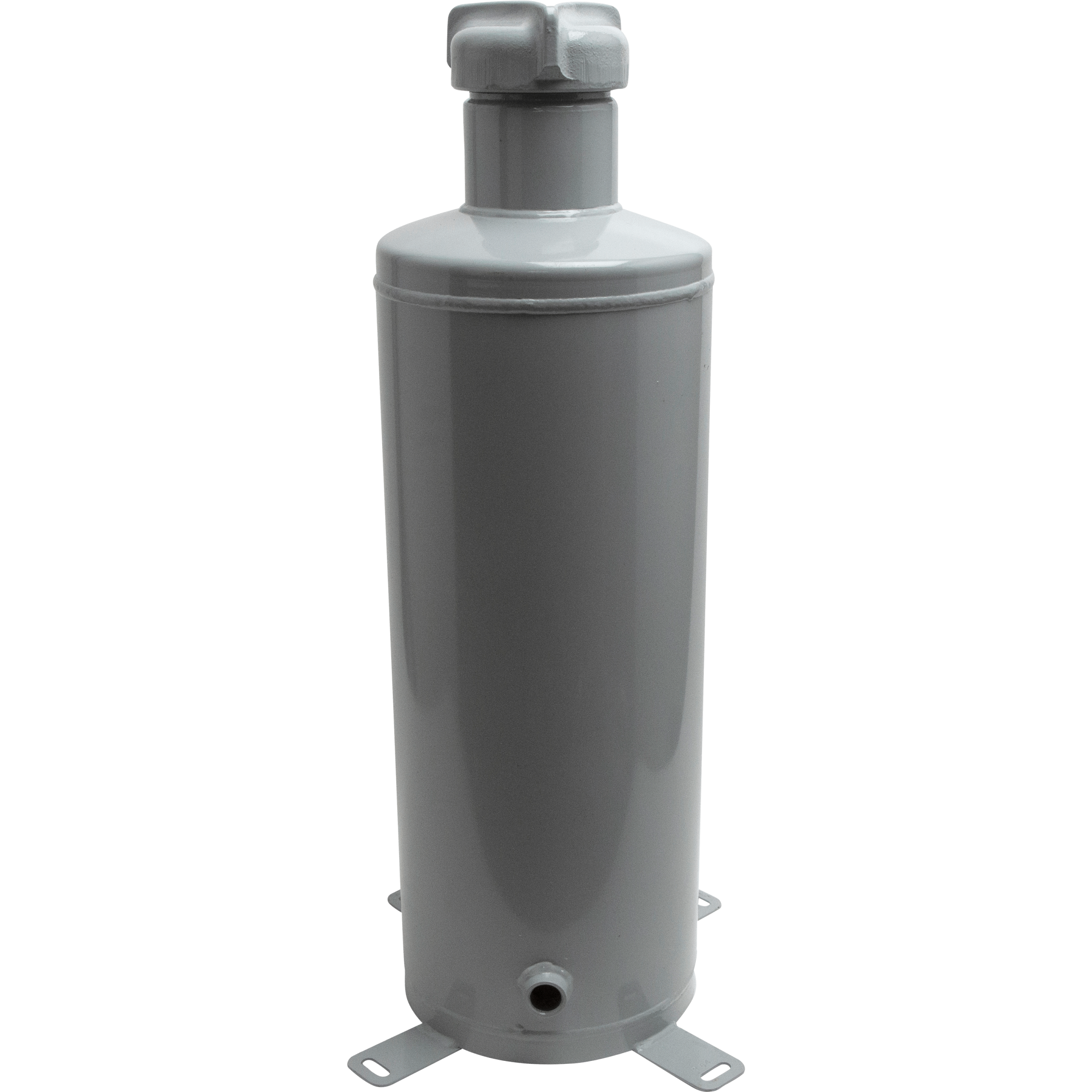

7.5-gallon capacity Economy Series footlock support bag filter made of heavy gauge carbon steel with chemical-resistant epoxy powder coating, designed for high-capacity filtration in closed water systems.

ECVX-7TC

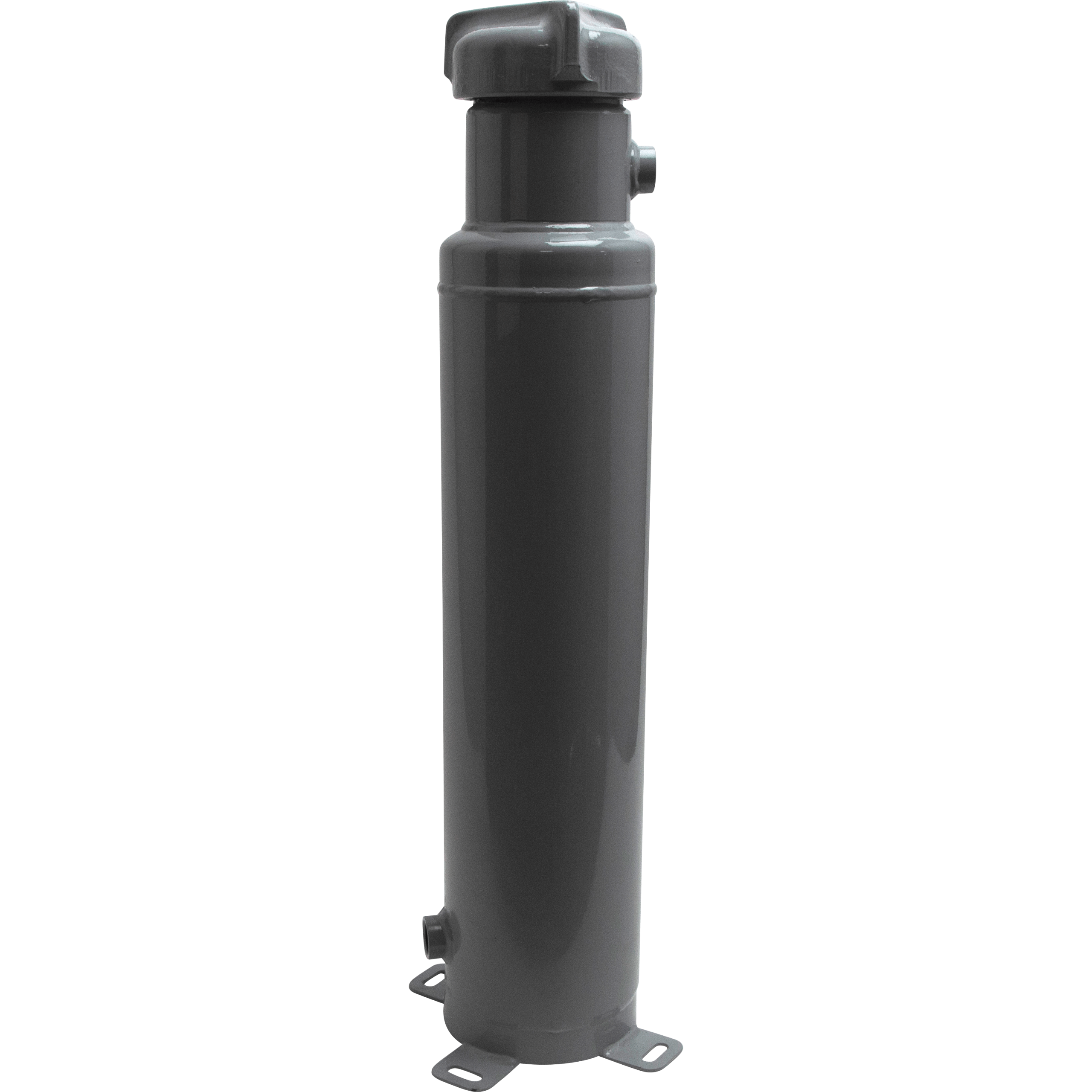

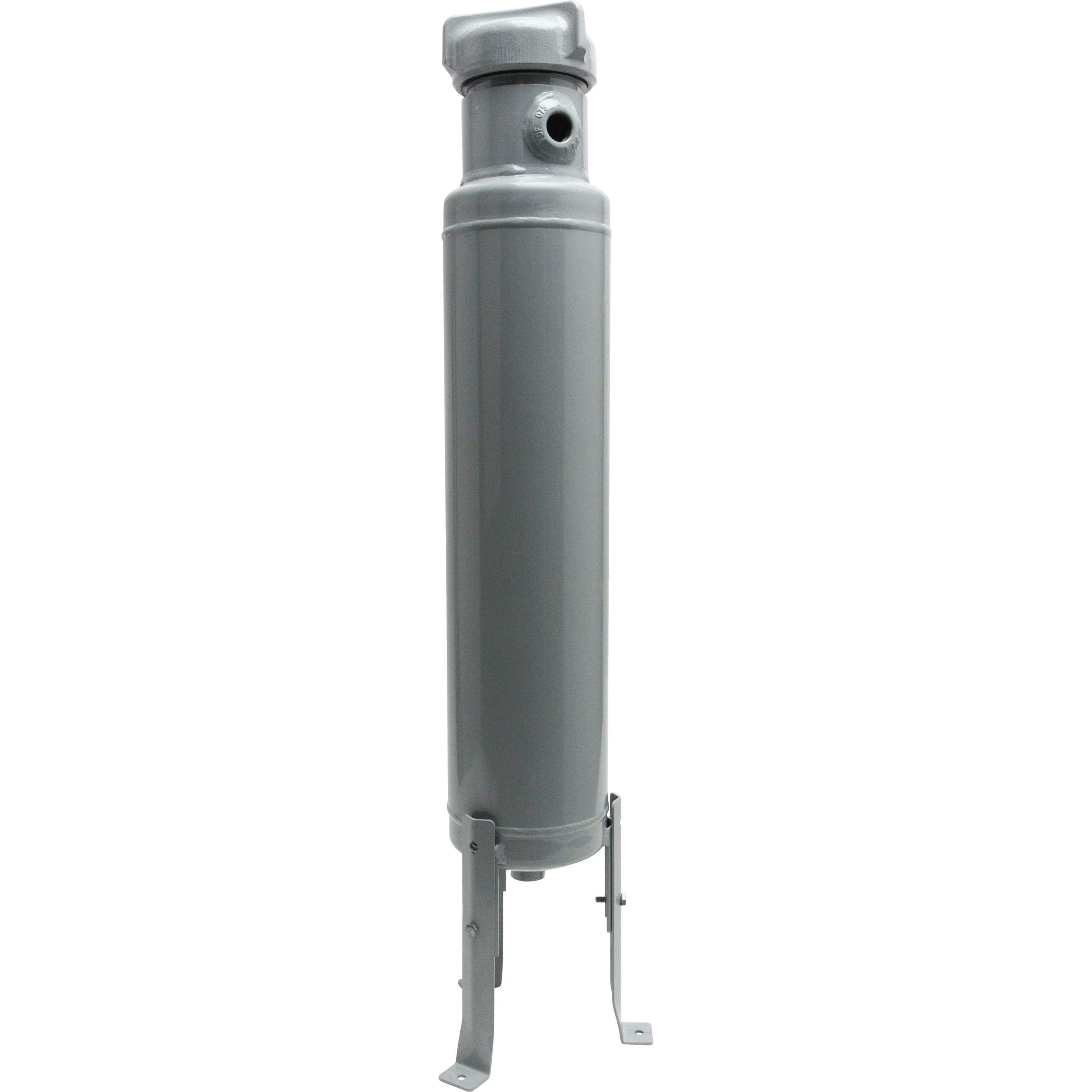

2.5-gallon Economy Series footlock support bag filter, featuring a durable carbon steel construction and chemical-resistant coating.

ECVX-2TC

Specifications

Model	Capacity	Support	Filter Compatibility	PSI
EC-2TC	2 Gallon	Legs	Filter Kit (not included)	300
EC-5TC	5 Gallon	Legs	Filter Kit (not included)	300
ECV-2TC	2 Gallon	Footlock	None	300
ECV-5TC	5 Gallon	Footlock	None	300
ECX-2TC	2.5 Gallon	Legs	Bag (included)	300
ECX-7TC	7 Gallon	Legs	Bag (included)	300
ECVX-7TC	7.5 Gallon	Footlock	Bag (included)	300
ECVX-2TC	2.5 Gallon	Footlock	Bag (included)	300

Technical Diagrams

EC-2TC, EC2-5TC (without filter) Technical diagram of Economy Bypass Feeder showing inlet, outlet, and drain connections for EC-2TC and EC-5TC models, designed for high-capacity filtration in closed water systems.

Technical diagram of Economy Bypass Feeder showing inlet, outlet, and drain connections for EC-2TC and EC-5TC models, designed for high-capacity filtration in closed water systems.

EC-2TC, EC2-5TC (with filter) Technical diagram of Economy Bypass Feeder showing inlet, outlet, and drain connections, designed for high-capacity filtration in closed water systems.

Technical diagram of Economy Bypass Feeder showing inlet, outlet, and drain connections, designed for high-capacity filtration in closed water systems.

ECV-2TC, ECV-5TC Technical diagram of Economy Bypass Feeder showing inlet, outlet, and drain connections, designed for high-capacity filtration in closed water systems.

ECX-2TC, ECX-7TC Technical diagram of Economy Bypass Feeder showing inlet, outlet, and drain connections for solid or liquid chemical introduction in water systems.

Technical diagram of Economy Bypass Feeder showing inlet, outlet, and drain connections for solid or liquid chemical introduction in water systems.

ECVX-2TC, ECVX-7TC Technical diagram of Economy Bypass Feeder showing inlet, outlet, and drain connections, designed for high-capacity filtration in closed hot and cold water systems.

Technical diagram of Economy Bypass Feeder showing inlet, outlet, and drain connections, designed for high-capacity filtration in closed hot and cold water systems.
