Corrosion Coupon Rack SKU: CRP

Check valve assembly with PVC pipes, flow meter, and blue handles, designed for flow control and prevention of backflow in industrial applications.

Corrosion Coupon Rack

Name: Corrosion Coupon Rack
SKU: CRP
Availability: InStock

SKU: CRP

Frequently Bought Together

Product Details

Features & Benefits Easy assembly Variable flow control Quick Connects for ease of coupon removal Sturdy Wall Mount Designs Built to ASTM Specifications

Description

Corrosion Coupon Racks showcasing Basic, Standard, and Premium package options with features including variable flow control, quick-release coupon holders, and sturdy design for monitoring corrosion in water treatment programs.

Corrosion Coupon Racks are a reliable and inexpensive way to monitor the effectiveness of water treatment programs against the damaging effects of corrosion. The .75 inch models have 5 GPM (18.9 LPM) flow control and our 1 inch models offer 5 or 10GPM ( 18.9 or 87.8 LPM).

2 and 4 station racks with or without Flow Gauge
3/4 -1″ Schedule 80 PVC rated 120PSI (8.27 bar) @ 125F
Sample Port for testing or draining of racks
Isolation valves inlet and Outlet
Patent Pending “No Nut” coupon holders
SCH 80 PVC Quick Connects with O-ring seal needs no tools to remove coupon holders.
Heavy-Duty “Y Strainers”

Variations Offered

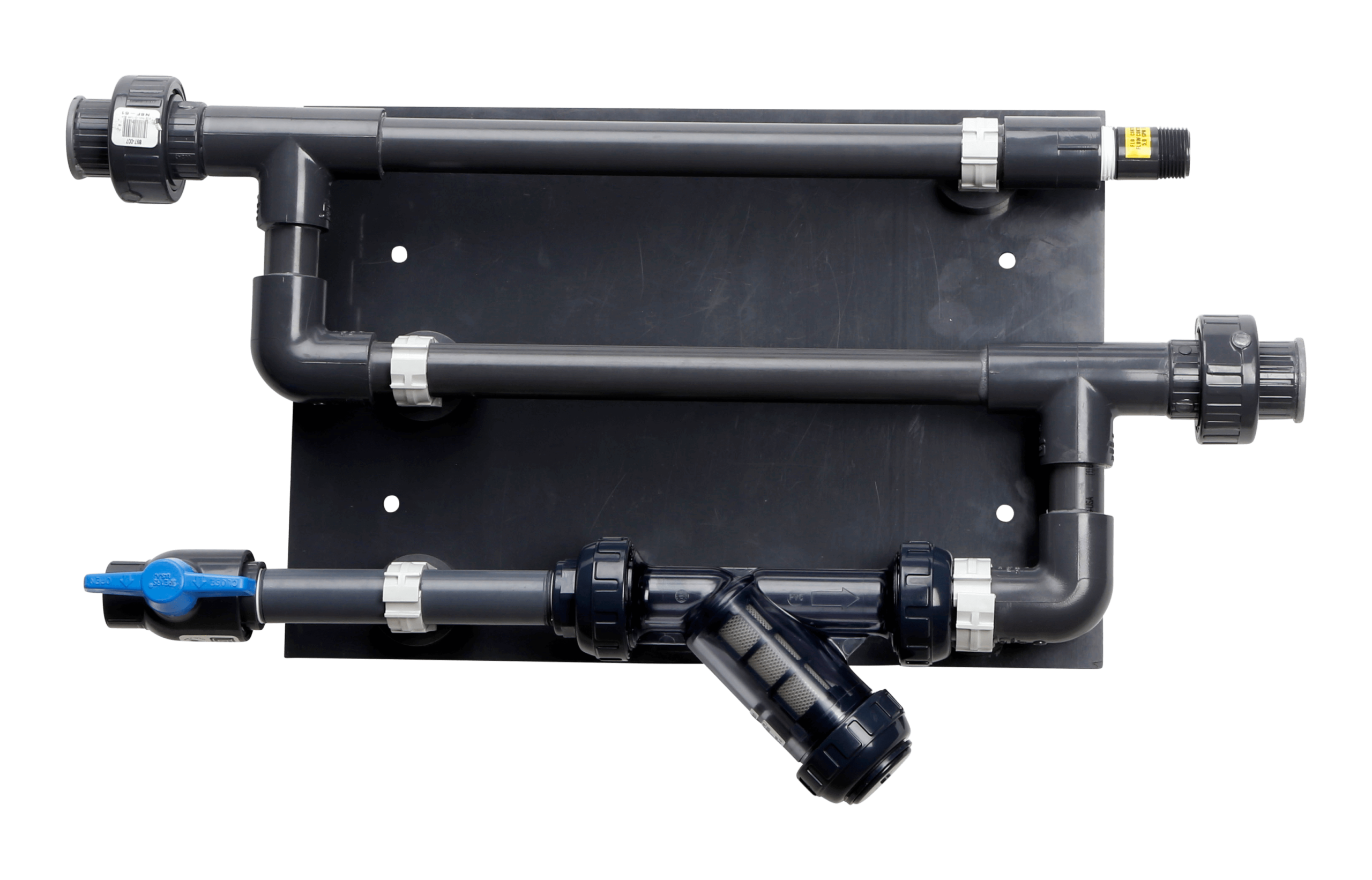

Corrosion Coupon Rack with PVC piping, flow control valve, and heavy-duty Y strainer for monitoring water treatment effectiveness against corrosion.

CRP-075-2T1-05

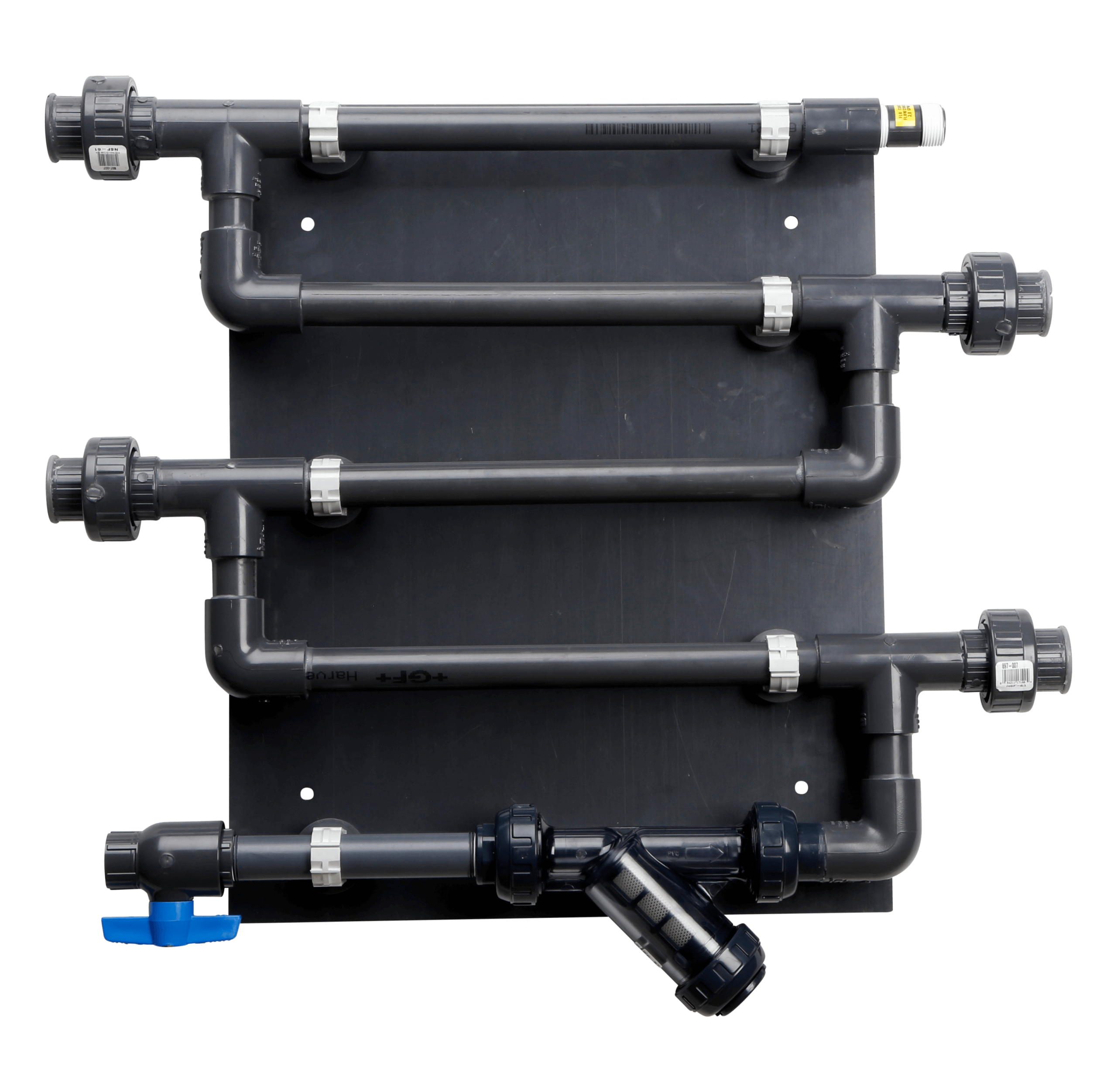

Corrosion Coupon Rack with four stations, featuring PVC pipes and flow control valves, designed for monitoring corrosion in water treatment programs.

CRP-075-4T1-05

CRP-100-2T1-05

CRP-100-4T1-05

CRP-100-2T1-10

CRP-100-4T1-10

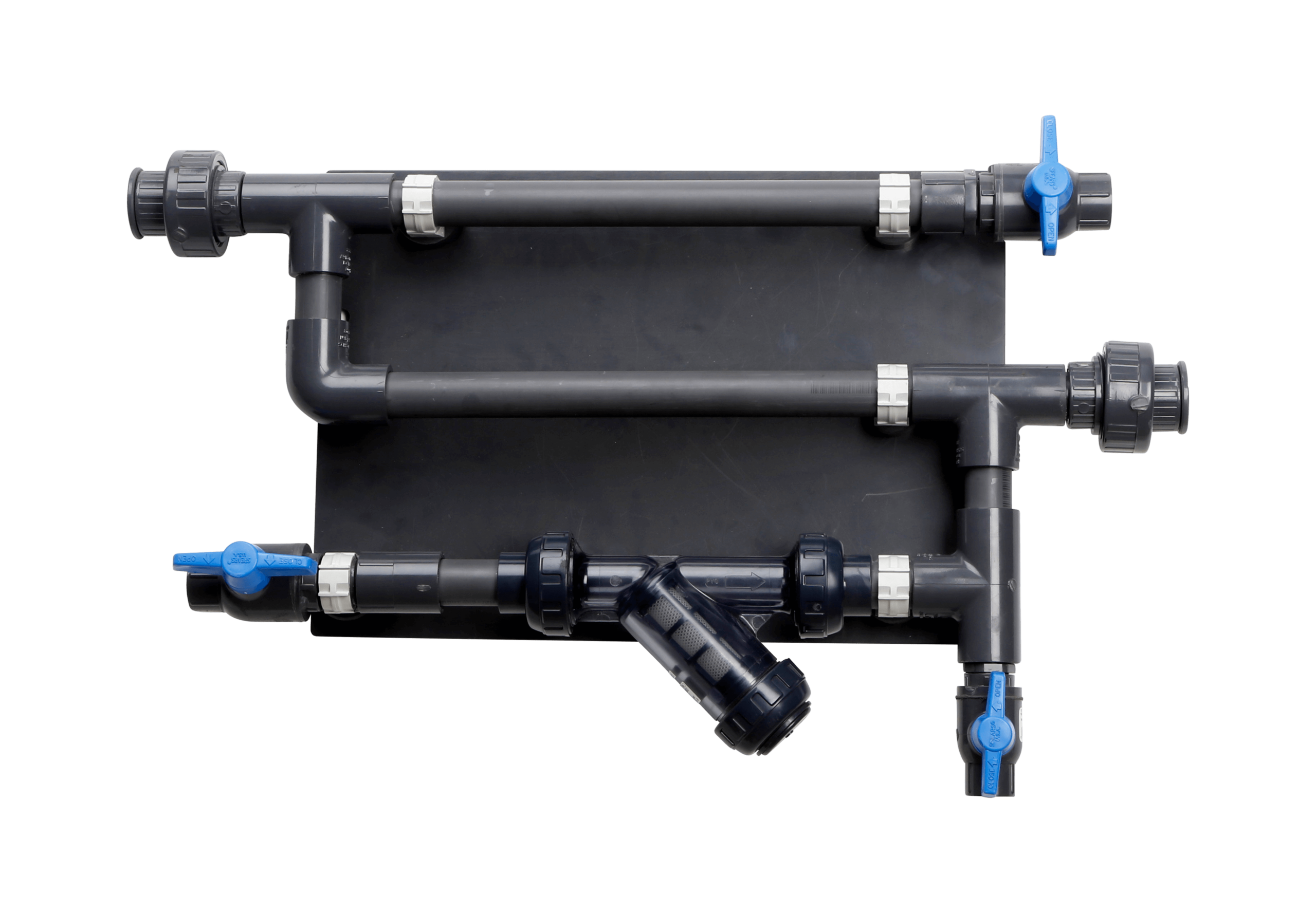

Corrosion coupon rack with PVC piping, flow control valves, and sample port for monitoring water treatment effectiveness against corrosion.

CRP-075-2T2-05

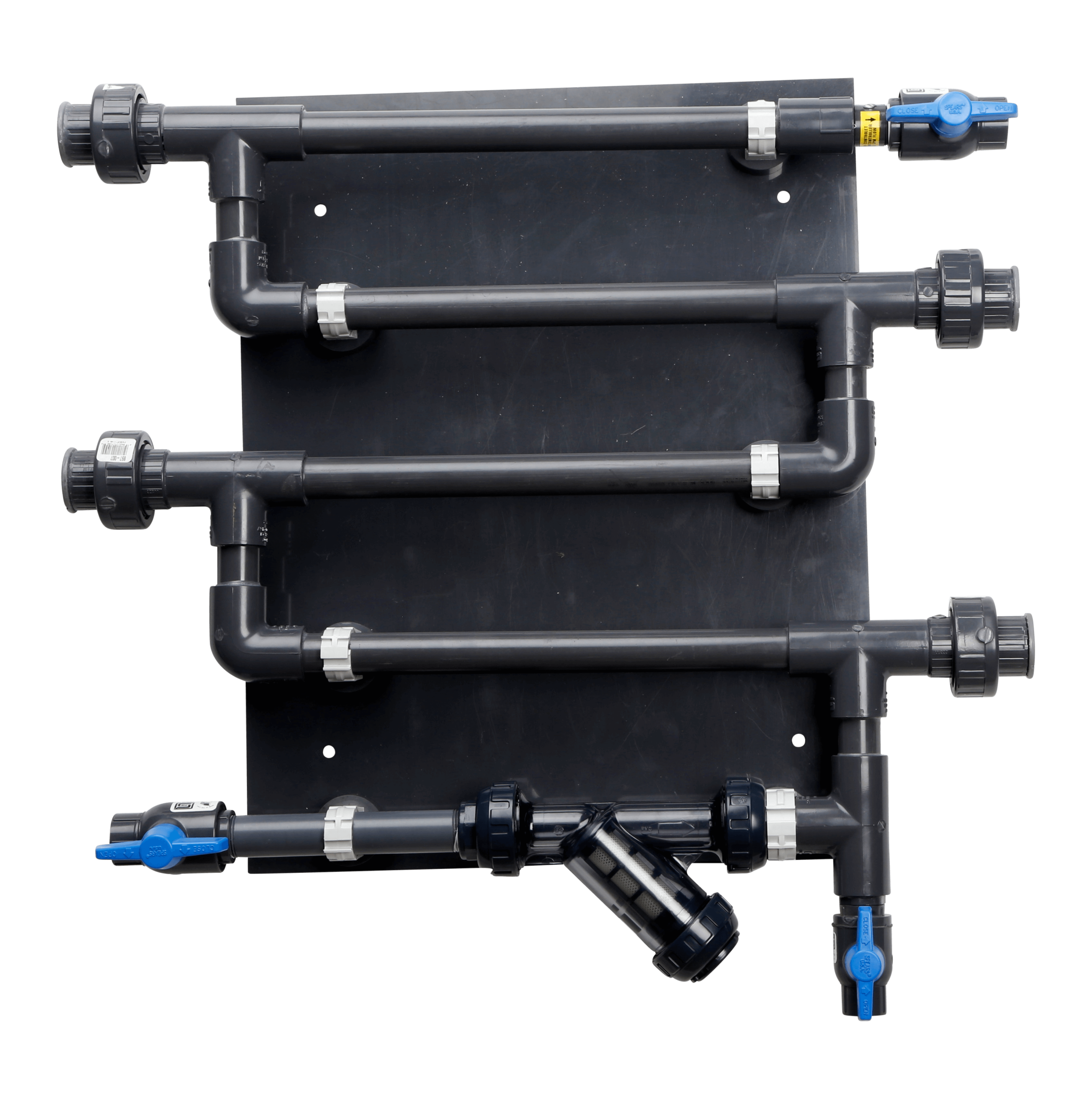

Corrosion Coupon Rack with four coupon holders, featuring Schedule 80 PVC construction, quick connect fittings, and isolation valves, designed for monitoring water treatment effectiveness.

CRP-075-4T2-05

CRP-100-2T2-05

CRP-100-4T2-05

CRP-100-2T2-10

CRP-100-4T2-10

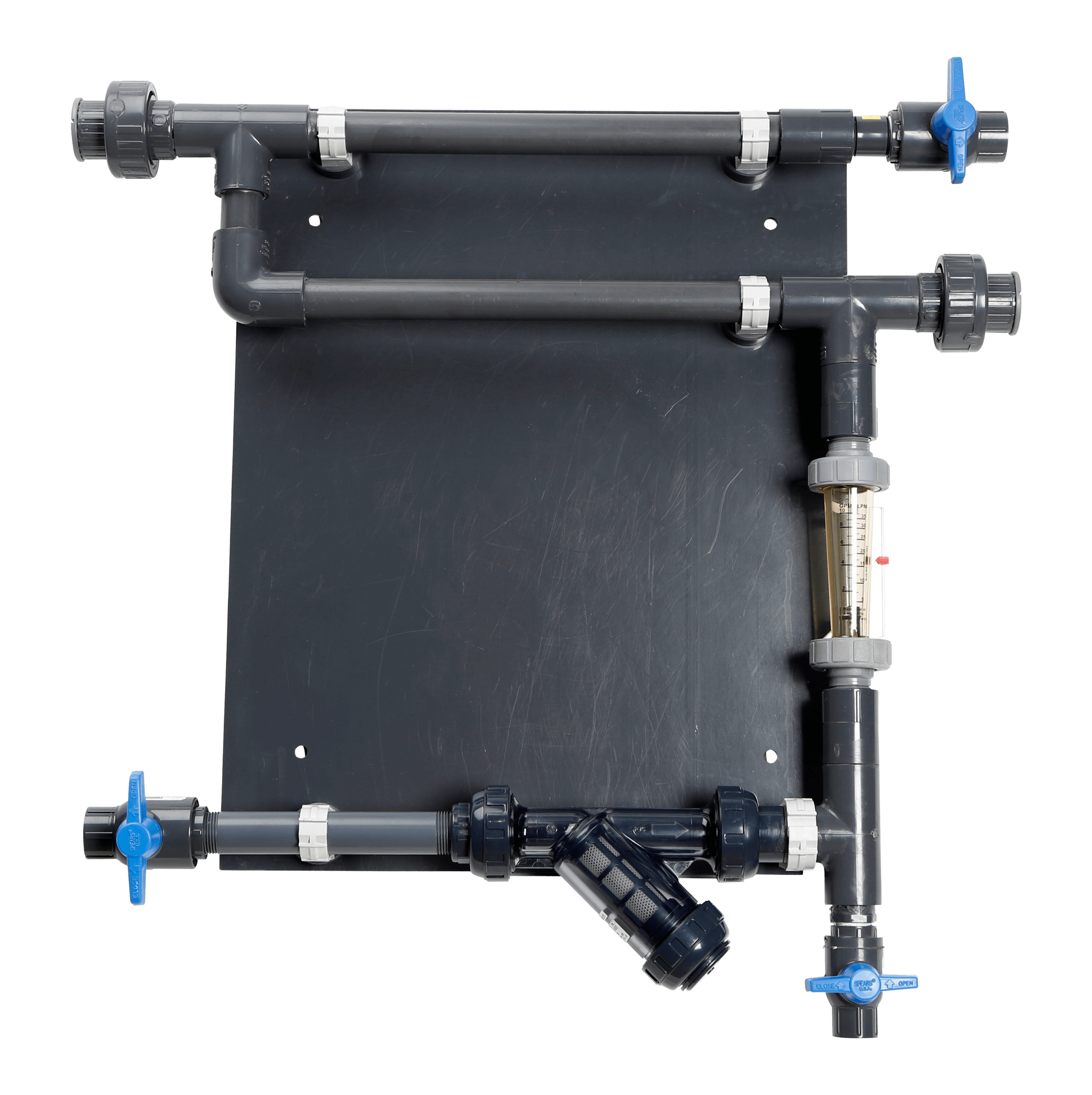

Corrosion Coupon Rack featuring PVC construction, flow control valves, and sample port for monitoring water treatment effectiveness against corrosion.

CRP-075-2T3-05

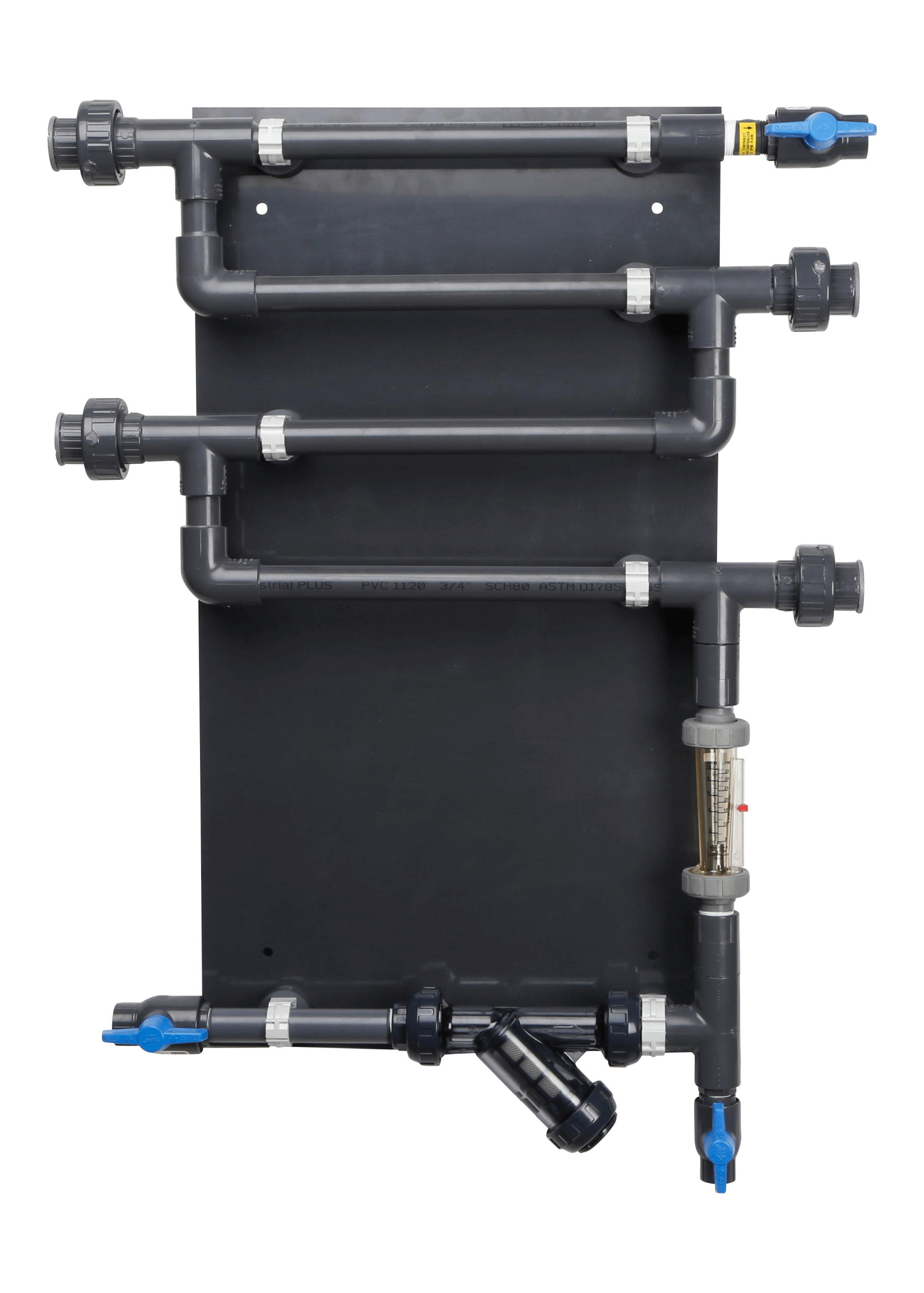

Corrosion Coupon Rack with multiple coupon holders, PVC construction, and flow control features for monitoring water treatment effectiveness.

CRP-075-4T3-05

CRP-100-2T3-05

CRP-100-4T3-05

CRP-100-2T3-10

CRP-100-4T3-10

Specifications

Model	Package	Number Of Coupon Holders	Pipe Diameter	Flow Control Rate	Material
CRP-075-2T1-05	Basic	2	3/4"	5 GPM	PVC
CRP-075-4T1-05	Basic	4	3/4"	5 GPM	PVC
CRP-100-2T1-05	Basic	2	1"	5 GPM	PVC
CRP-100-4T1-05	Basic	4	1"	5 GPM	PVC
CRP-100-2T1-10	Basic	2	1"	10 GPM	PVC
CRP-100-4T1-10	Basic	4	1"	10 GPM	PVC
CRP-075-2T2-05	Standard	2	3/4"	5 GPM	PVC
CRP-075-4T2-05	Standard	4	3/4"	5 GPM	PVC
CRP-100-2T2-05	Standard	2	1"	5 GPM	PVC
CRP-100-4T2-05	Standard	4	1"	5 GPM	PVC
CRP-100-2T2-10	Standard	2	1"	10 GPM	PVC
CRP-100-4T2-10	Standard	4	1"	10 GPM	PVC
CRP-075-2T3-05	Premium	2	3/4"	5 GPM	PVC
CRP-075-4T3-05	Premium	4	3/4"	5 GPM	PVC
CRP-100-2T3-05	Premium	2	1"	5 GPM	PVC
CRP-100-4T3-05	Premium	4	1"	5 GPM	PVC
CRP-100-2T3-10	Premium	2	1"	10 GPM	PVC
CRP-100-4T3-10	Premium	4	1"	10 GPM	PVC

Technical Diagrams

Coupon Rack Package Comparison Comparison chart of Corrosion Coupon Rack packages: Basic, Standard, and Premium features, including flow control options and component specifications.

CRP-075-2T2-05 Technical diagram of the Corrosion Coupon Rack (CRP-075-2T2-05) showing front and bottom views with dimensions and mounting hole specifications, relevant to corrosion monitoring in water treatment programs.

Technical diagram of the Corrosion Coupon Rack (CRP-075-2T2-05) showing front and bottom views with dimensions and mounting hole specifications, relevant to corrosion monitoring in water treatment programs.

CRP-075-4T2-05 Technical diagram of PVC Corrosion Coupon Rack model CRP-075-4T2-05, showing front and bottom views, dimensions, and mounting holes for installation.

Technical diagram of PVC Corrosion Coupon Rack model CRP-075-4T2-05, showing front and bottom views, dimensions, and mounting holes for installation.

CRP-100-2T2-05 & CRP-100-2T2-10 Technical diagram of Corrosion Coupon Rack with front and bottom views, featuring PVC piping, mounting holes, and specifications for CRP-075 and CRP-100 series.

Technical diagram of Corrosion Coupon Rack with front and bottom views, featuring PVC piping, mounting holes, and specifications for CRP-075 and CRP-100 series.

CRP-100-4T2-05 & CRP-100-4T2-10 Technical diagram of Corrosion Coupon Rack with detailed front and bottom views, showcasing dimensions and mounting features for PVC configurations, relevant to Vector Industries' corrosion monitoring solutions.

Technical diagram of Corrosion Coupon Rack with detailed front and bottom views, showcasing dimensions and mounting features for PVC configurations, relevant to Vector Industries' corrosion monitoring solutions.

CRP-075-2T3-05 Technical diagram of Corrosion Coupon Rack CRP-075-2T3-05, featuring front and bottom views with detailed dimensions and mounting holes, relevant to corrosion monitoring solutions by Vector Industries.

Technical diagram of Corrosion Coupon Rack CRP-075-2T3-05, featuring front and bottom views with detailed dimensions and mounting holes, relevant to corrosion monitoring solutions by Vector Industries.

CRP-075-4T3-05 Technical diagram of the CRP-075-4T3-05 corrosion coupon rack, featuring front and bottom views with labeled dimensions, showcasing mounting holes and PVC components for water treatment applications.

Technical diagram of the CRP-075-4T3-05 corrosion coupon rack, featuring front and bottom views with labeled dimensions, showcasing mounting holes and PVC components for water treatment applications.

CRP-100-2T3-05 & CRP-100-2T3-10 Technical diagram of the Corrosion Coupon Rack, featuring front and bottom views with detailed dimensions and mounting specifications, relevant to CRP-100 series products.

Technical diagram of the Corrosion Coupon Rack, featuring front and bottom views with detailed dimensions and mounting specifications, relevant to CRP-100 series products.

CRP-100-4T3-05 & CRP-100-4T3-10 Technical diagram of a corrosion coupon rack with front and bottom views, detailing dimensions and mounting specifications for PVC configurations, relevant to corrosion monitoring solutions by Vector Industries.

Technical diagram of a corrosion coupon rack with front and bottom views, detailing dimensions and mounting specifications for PVC configurations, relevant to corrosion monitoring solutions by Vector Industries.

Product Information

Product Datasheet

View Compatible Accessories →

Features of the Corrosion Coupon Rack

The Corrosion Coupon Rack is designed to efficiently monitor corrosion in various water treatment systems. Its robust construction and innovative features ensure reliable performance, making it an essential tool for maintaining water quality.

Key features include a flow control system that accommodates different flow rates, easy-to-use "No Nut" coupon holders for quick access, and heavy-duty strainers that enhance the durability of the rack. These attributes contribute to its effectiveness in diverse applications, from industrial settings to municipal water treatment facilities.

Available Models and Configurations

Vector Industries offers a range of Corrosion Coupon Rack models to meet various customer needs. Each model is tailored for specific flow rates and configurations, ensuring that users can find the perfect fit for their application.

The models include options with different pipe diameters, such as 3/4 inch and 1 inch, and flow rates ranging from 5 GPM to 10 GPM. Additionally, customers can choose between 2 or 4 station racks, allowing for flexible installation based on the monitoring requirements of their systems.

Specifications and Technical Details

Understanding the specifications of the Corrosion Coupon Rack is crucial for making an informed purchasing decision. Each model comes with detailed information regarding its construction materials, flow control rates, and the number of coupon holders.

For example, the CRP-075-2T1-05 model features 2 coupon holders, a 3/4 inch pipe diameter, and a flow control rate of 5 GPM, all constructed from high-quality PVC. These specifications ensure that the racks are not only effective but also durable under various operational conditions.

Complementary Products and Accessories

In addition to the Corrosion Coupon Rack, Vector Industries provides a variety of complementary products that enhance water treatment processes. These accessories are designed to work seamlessly with the racks, ensuring optimal performance and efficiency.

Products such as the Biomate 2000 Series Biocide Feeders and the Economate Series Biocide Feeders are excellent additions to any water treatment setup. By integrating these accessories, users can achieve comprehensive corrosion management and maintain the integrity of their water systems.
