Stainless Steel Injection Quill SKU: IQ-316-50

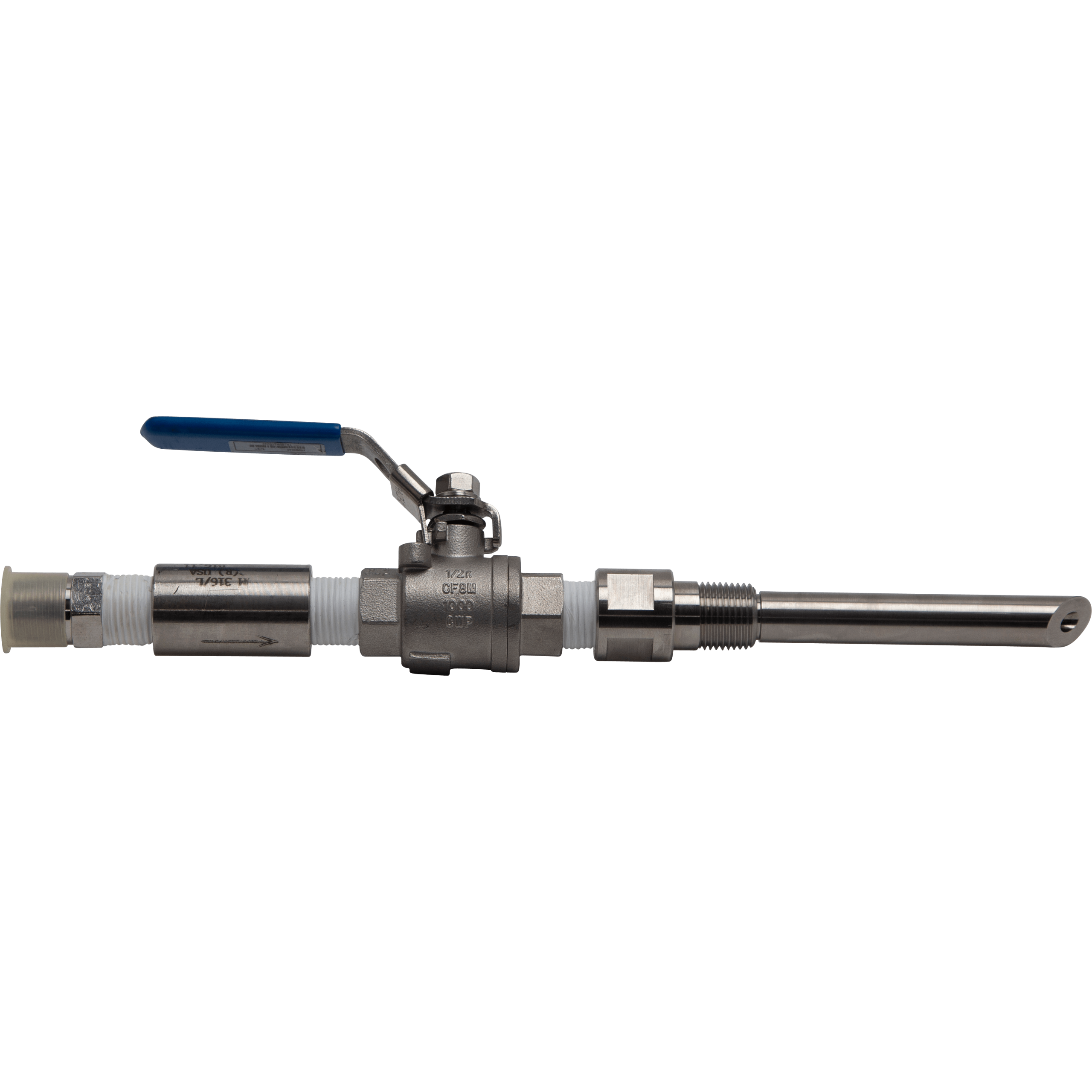

Stainless Steel Injection Quill

Add to P.0. Reset
Frequently Bought Together
Product Details
Features & Benefits Made with high-quality 316 stainless steel Precision components with spring-loaded ball & check valve Rated up to 1000 PSI

These injection quills have been developed to allow chemical injection into the center stream of flow. This enables you to introduce medium to highly corrosive chemicals into a pipeline without damage to the side port or pipe wall at the point of injection.

  • Injection Nozzles available in 3″,4″ and 6 ” lengths
  • 1/2 NPT Male Connections
  • Replaceable and Interchangeable


Model Length
IQ-316-50-3 3 inches
IQ-316-50-4 4 inches
IQ-316-50-6 6 inches
