Biomate 2000 Series

Name: Biomate 2000 Series
SKU: Biomate 2000
Availability: InStock

SKU: Biomate 2000

Frequently Bought Together

Product Details

Features & Benefits Easy-open wide-mouth top See-through body design 1" plumbing for high-flow systems 125LB Pressure relief valve Wide bolt-down base

Description

The Biomate is perfect for any system that requires a biocide tablet feeder. Use chlorine tablets or bromine pucks in this erosional side stream feeder. Three sizes are available for different flow rates and capacities.

Applications Include:

Cooling Tower Biocide Feeder
Condensers
Irrigation Systems and Swimming Pools
Re-circulation Loops
Chlorine or Bromine Tablet Feed System
Chlorinator or Brominator
Hexametaphosphate Feeder

Variations Offered

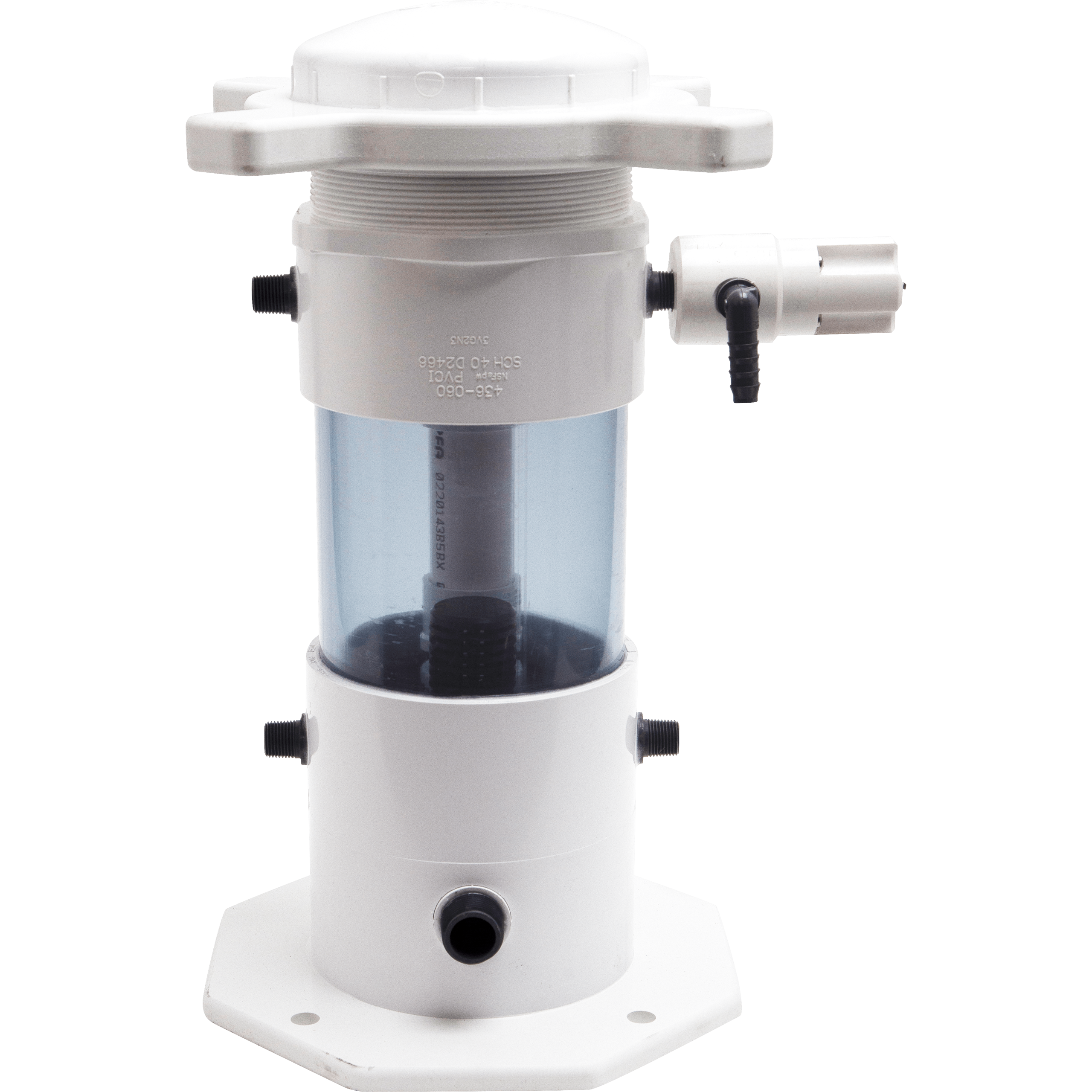

Biomate 2000-15

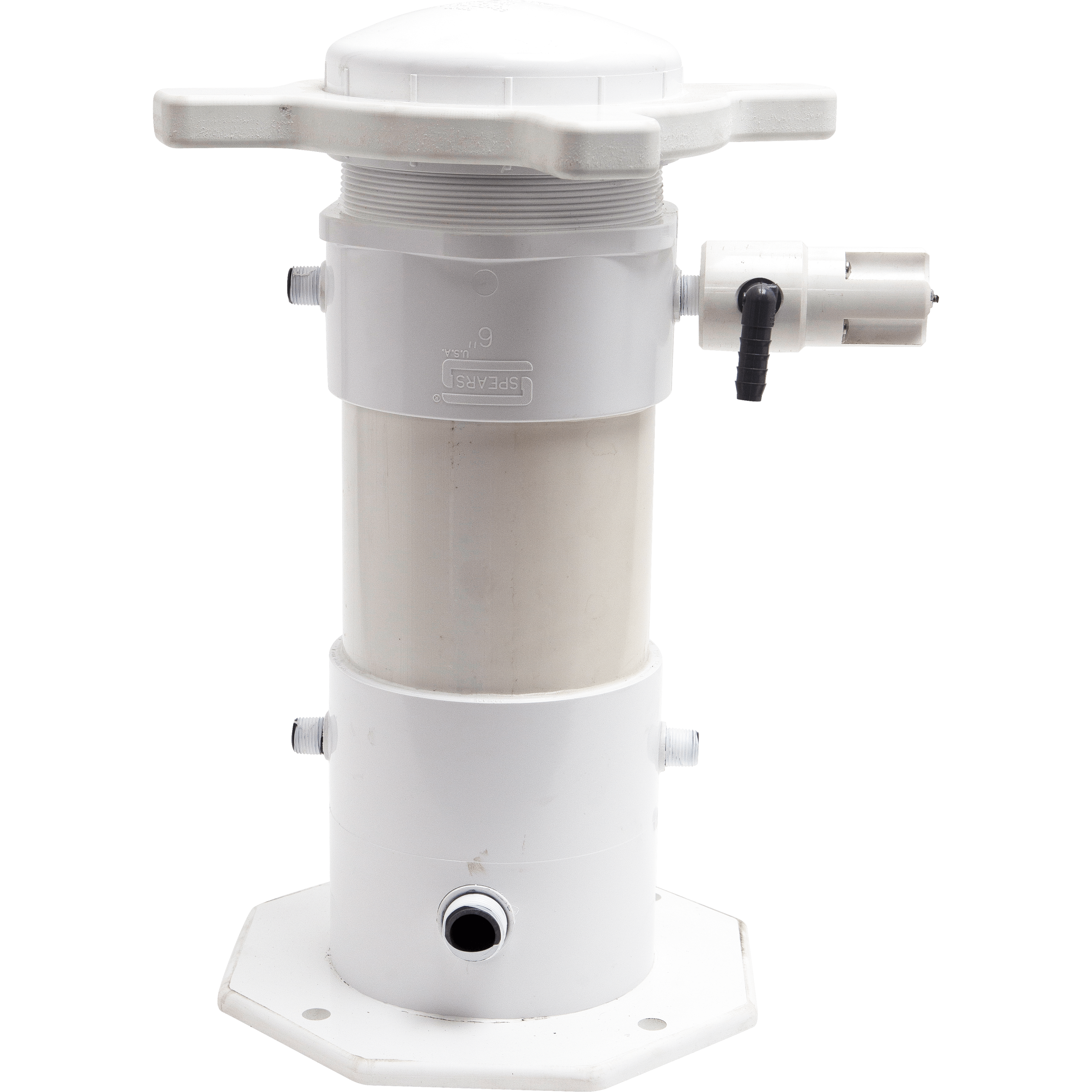

Biomate 2000-15W

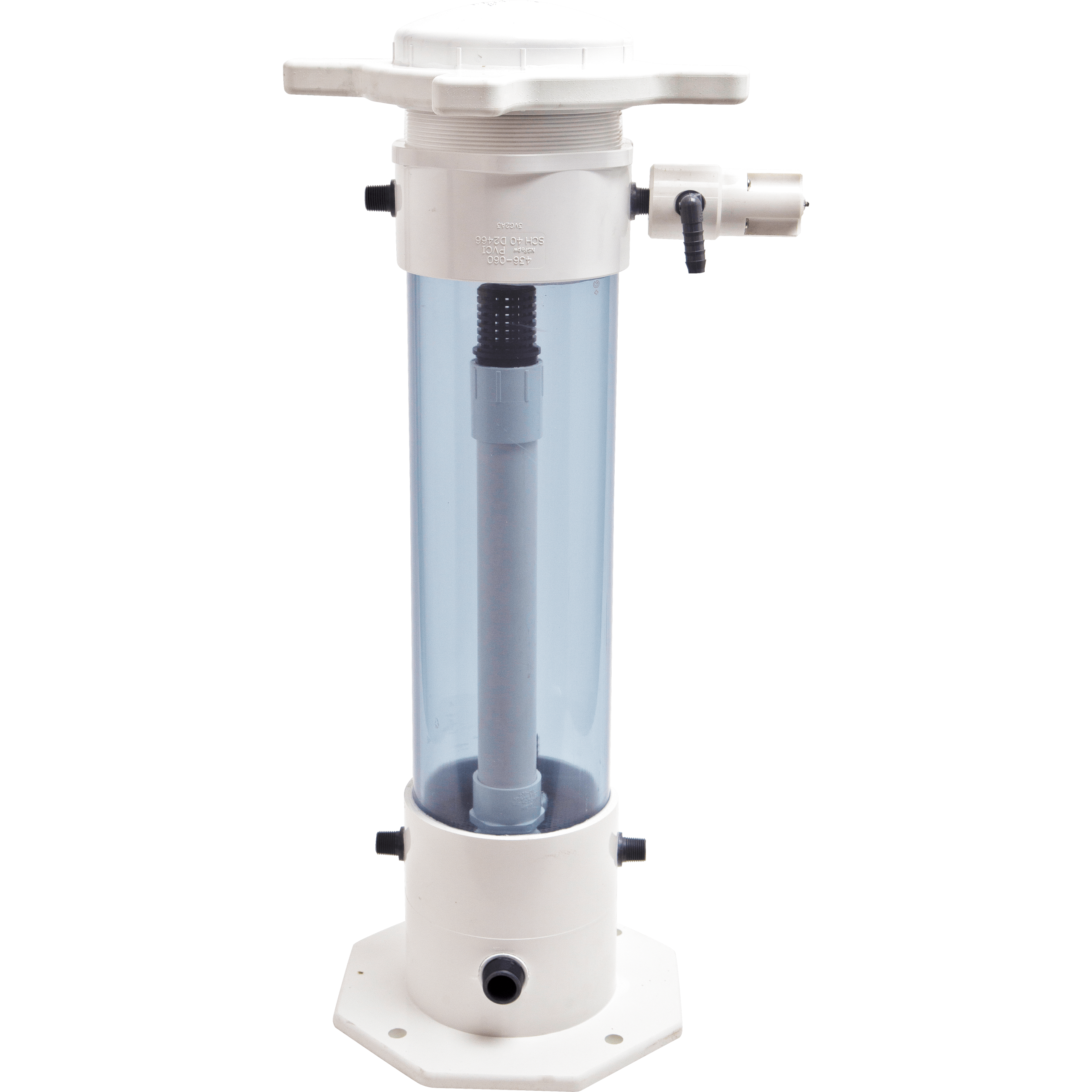

Biomate 2000-25

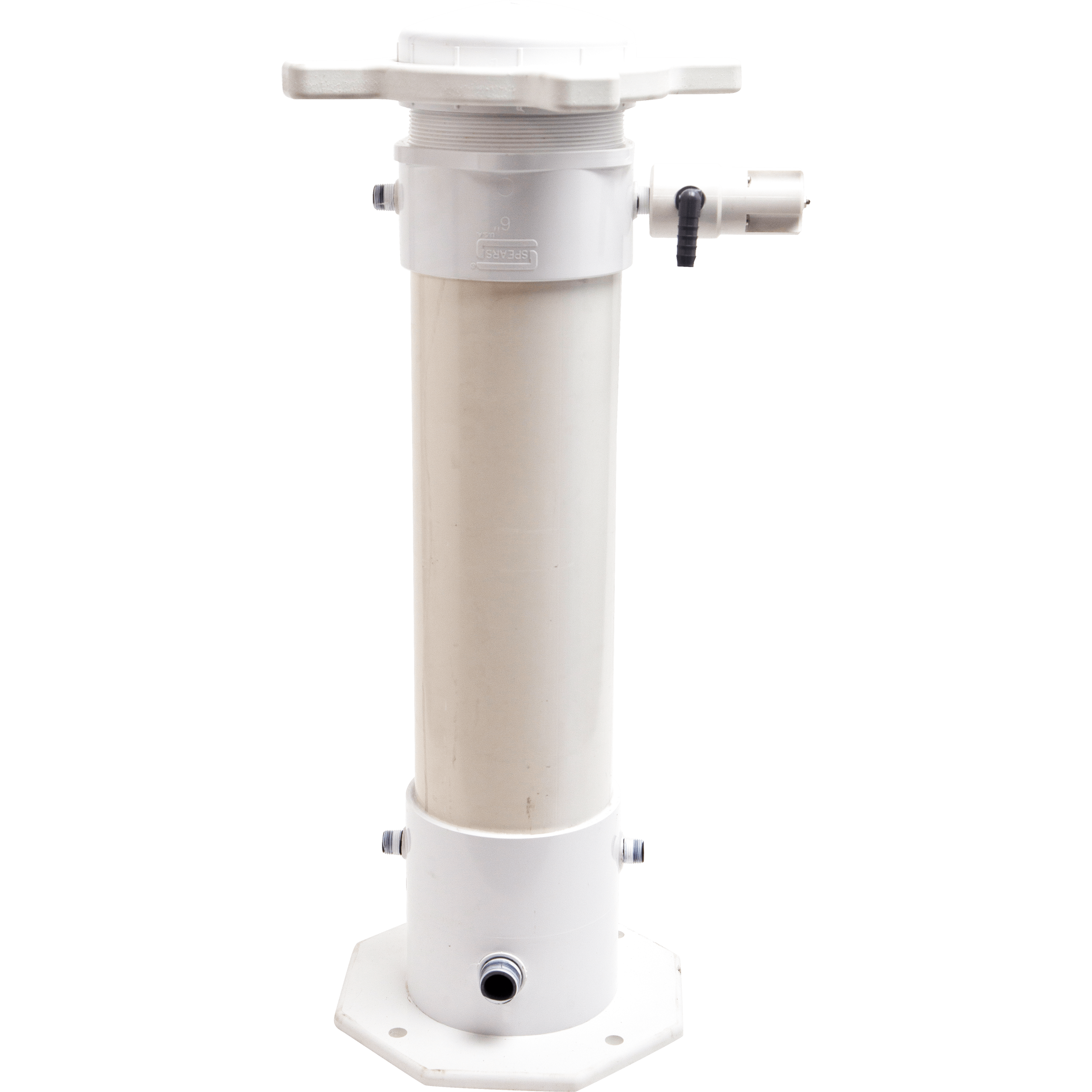

Biomate 2000-25W

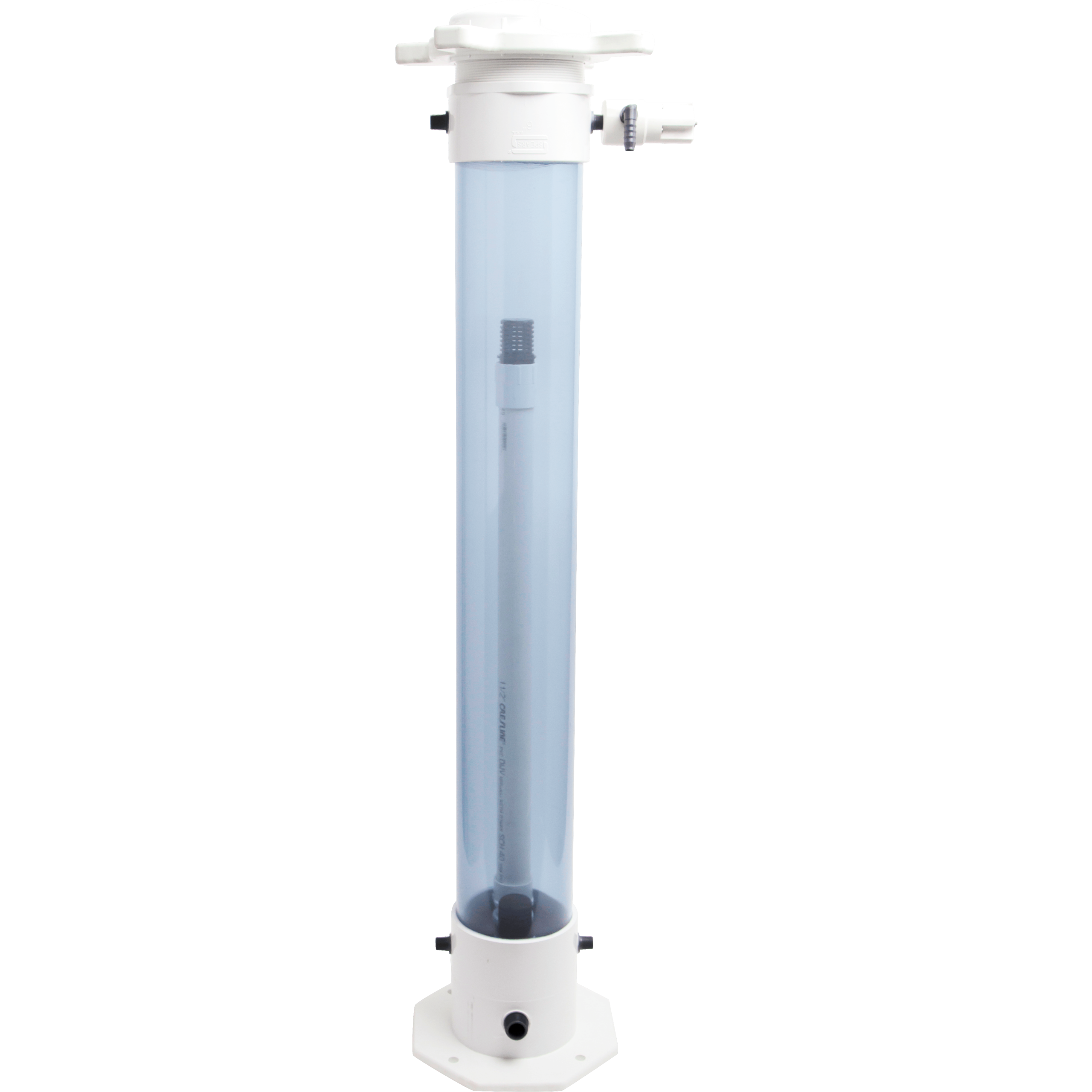

Biomate 2000-50

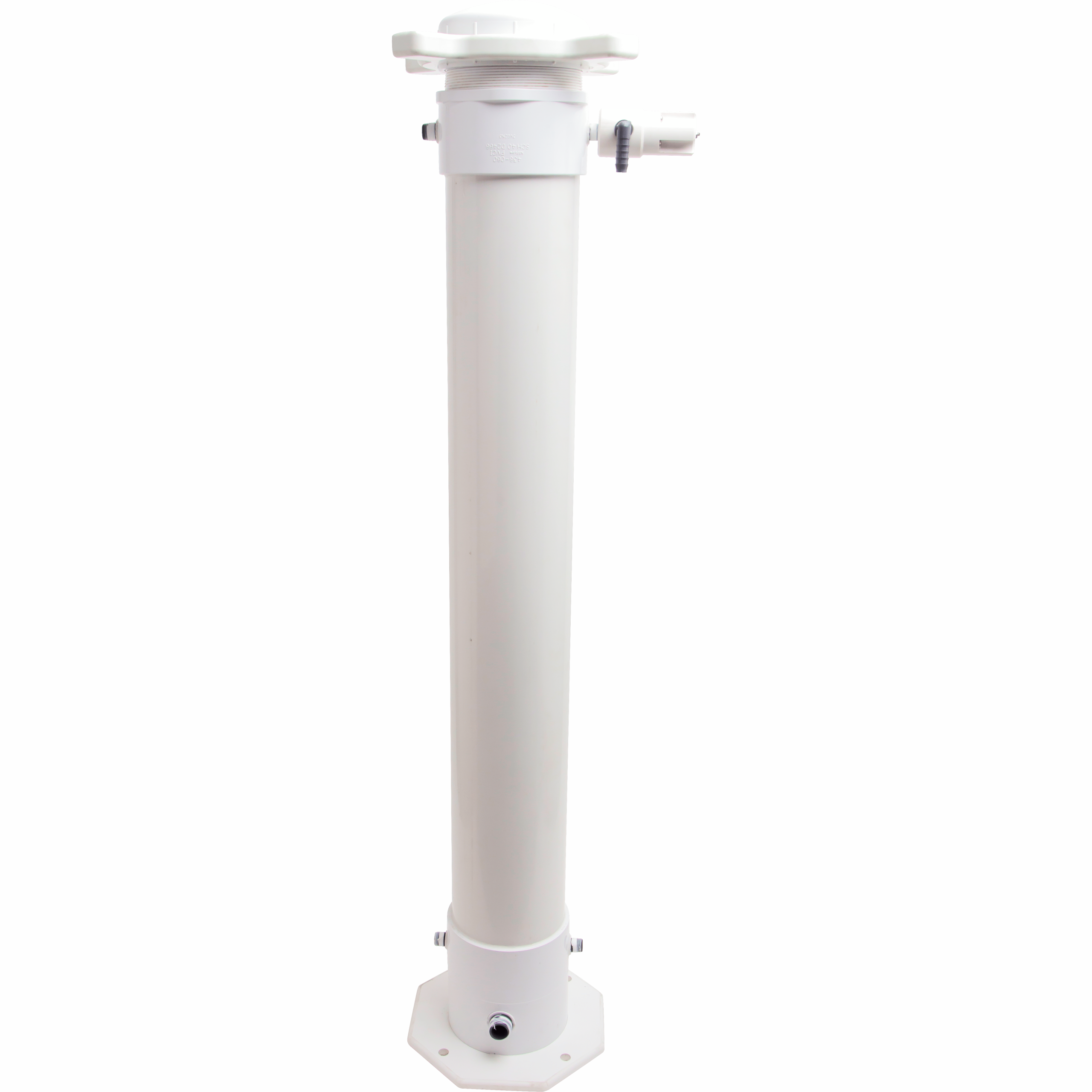

Biomate 2000-50W

Specifications

Model	Material Capacity	Color	Dimensions (H x W)	Inlet Diameter	Outlet Diameter	Flow Range
Biomate 2000-15	15 lbs (6.8 kg)	Clear	21 in. x 13 in.	1 inch	1 inch	1 to 10 GPM
Biomate 2000-15W	15 lbs (6.8 kg)	White	21 in. x 13 in.	1 inch	1 inch	1 to 10 GPM
Biomate 2000-25	25 lbs (11.3 kg)	Clear	33 in. x 13 in.	1 inch	1 inch	1 to 10 GPM
Biomate 2000-25W	25 lbs (11.3 kg)	White	33 in. x 13 in.	1 inch	1 inch	1 to 10 GPM
Biomate 2000-50	50 lbs (22.6 kg)	Clear	57 in. x 13 in.	1 inch	1 inch	1 to 10 / 5 to 20 GPM
Biomate 2000-50W	50 lbs (22.6 kg)	White	57 in. x 13 in.	1 inch	1 inch	1 to 10 / 5 to 20 GPM

Technical Diagrams

All Biomate Variations

Biomate Valve Package - Front View

Biomate Valve Package - Side View

Product Information

Product Datasheet

View Compatible Accessories →
